Alviguide Blue+™

INTERVENTIONAL CARDIOLOGY GUIDING CATHETER

ORDER INFORMATION ALVIGUIDE BLUE+™ (continued)

CORONARY BYPASS

		CORONARY BYPASS LEFT (LCB)	CORONARY BYPASS RIGHT (RCB)

5 Pack
	5F	503110202399	503110202402
	6F	503110202699	503110202702
	7F	503110202999	503110203002
	8F	503110203299	503110203302
PP		CORONARY BYPASS LEFT PP (LCB PP)	CORONARY BYPASS RIGHT PP (RCB PP)
	5F	503110202401	503110202403
	6F	503110202701	503110202703
	7F	503110203001	503110203003
	8F	503110203301	503110203303

CORONARY BYPASS GRAFT

		CORONARY BYPASS GRAFT RIGHT (CBGR)	CORONARY BYPASS GRAFT LEFT (CBGL)

5 Pack
	5F	503110202446	503110202447
	6F	503110202746	503110202747
	7F	503110203046	503110203047
	8F	503110203346	503110203347
PP*		CORONARY BYPASS GRAFT RIGHT PP	CORONARY BYPASS GRAFT LEFT PP
	5F	503110202448	503110202449
	6F	503110202748	503110202749
	7F	503110203048	503110203049
	8F	503110203348	503110203349

PROGRESSIVE RIGHT

		PROGRESSIVE RIGHT (PR)

5 Pack
	5F	503110202432
	6F	503110202732
	7F	503110203032
	8F	503110203332
PP*		PROGRESSIVE RIGHT PP (PR-PP)
	5F	503110202433
	6F	503110202733
	7F	503110203033
	8F	503110203333

		Q4

5 Pack
	5F	503110202438
	6F	503110202738
	7F	503110203038
	8F	503110203338
PP*		Q4 PP
	5F	503110202439
	6F	503110202739
	7F	503110203039
	8F	503110203339

TECHNICAL DATA

Diameters:	5F, 6F, 7F and 8F
Length:	100cm
Shaft:	Variable stiffness segments
Material:	Nylon/Pebax with Teflon Inner Liner
Braiding:	Stainless steel flat wire
Tip material:	Pebax
Radiopaque component:	Barium Sulfate

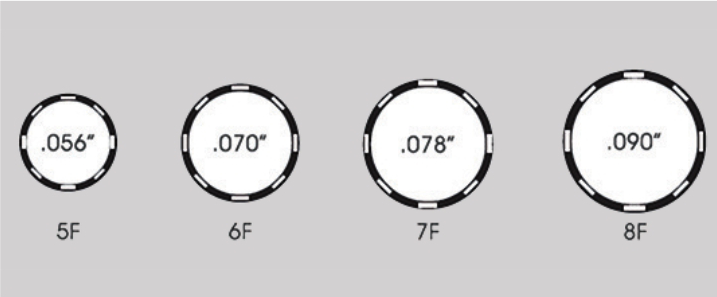

INNER LUMEN (INCH)

ORDER INFORMATION ALVIGUIDE BLUE+™ (continued)

JUDKINS RIGHT (JR)

		JR 3.5	JR 4.0	JR 4.5	JR 5.0	JR 6.0	JR 3.5 ST	JR 4.0 ST	JR 4.5 ST	JR 5.0 ST	JRC 3.5	JRC 4.0	JRC 4.5

5 Pack
	5F	503110202331	503110202332	503110202333	503110202334	503110202335	503110202341	503110202342	503110202343	503110202344	503110202349	503110202350	503110202351
	6F	503110202631	503110202632	503110202633	503110202634	503110202635	503110202641	503110202642	503110202643	503110202644	503110202649	503110202650	503110202651
	7F	503110202931	503110202932	503110202933	503110202934	503110202935	503110202941	503110202942	503110202943	503110202944	503110202949	503110202950	503110202951
	8F	503110203231	503110203232	503110203233	503110203234	503110203235	503110203241	503110203242	503110203243	503110203244	503110203249	503110203250	503110203251
PP*		JR 3.5 PP	JR 4.0 PP	JR 4.5 PP	JR 5.0 PP	JR 6.0 PP	JR 3.5 ST PP	JR 4.0 ST PP	JR 4.5 ST PP	JR 5.0 ST PP	JRC 3.5 PP	JRC 4.0 PP	JRC 4.5 PP
	5F	503110202336	503110202337	503110202338	503110202339	503110202340	503110202345	503110202346	503110202347	503110202348	503110202352	503110202353	503110202354
	6F	503110202636	503110202637	503110202638	503110202639	503110202640	503110202645	503110202646	503110202647	503110202648	503110202652	503110202653	503110202654
	7F	503110202936	503110202937	503110202938	503110202939	503110202940	503110202945	503110202946	503110202947	503110202948	503110202952	503110202953	503110202954
	8F	503110203236	503110203237	503110203238	503110203239	503110203240	503110203245	503110203246	503110203247	503110203248	503110203252	503110203253	503110203254

INTERNAL MAMMARY

		INTERNAL MAMMARY (IMA)

5 Pack
	5F	503110202404
	6F	503110202704
	7F	503110203004
	8F	503110203304
PP*		INTERNAL MAMMARY PP (IMA PP)
	5F	503110202405
	6F	503110202705
	7F	503110203005
	8F	503110203305

HOCKEY STICK

		HOCKEY STICK (HS)

5 Pack
	5F	503110202410
	6F	503110202710
	7F	503110203010
	8F	503110203310
PP*		HOCKEY STICK PP (HS PP)
	5F	503110202411
	6F	503110202711
	7F	503110203011
	8F	503110203311

EL GAMAL

		EL GAMAL (EL G)

5 Pack
	5F	503110202412
	6F	503110202712
	7F	503110203012
	8F	503110203312
PP*		EL GAMAL PP (EL G PP)
	5F	503110202413
	6F	503110202713
	7F	503110203013
	8F	503110203313

JUDKINS LEFT

		JUDKINS LEFT (JL 3.0)	JUDKINS LEFT (JL 3.5)	JUDKINS LEFT (JL 4.0)	JUDKINS LEFT (JL 4.5)	JUDKINS LEFT (JL 5.0)	JUDKINS LEFT (JL 6.0)	JUDKINS LEFT ST (JL 3.5 ST)	JUDKINS LEFT ST (JL 4.0 ST)	JUDKINS LEFT ST (JL 4.5 ST)	JUDKINS LEFT ST (JL 5.0 ST)

5 Pack
	5F	503110202301	503110202302	503110202303	503110202304	503110202305	503110202306	503110202315	503110202316	503110202317	503110202318
	6F	503110202601	503110202602	503110202603	503110202604	503110202605	503110202606	503110202615	503110202616	503110202617	503110202618
	7F	503110202901	503110202902	503110202903	503110202904	503110202905	503110202906	503110202915	503110202916	503110202917	503110202918
	8F	503110203201	503110203202	503110203203	503110203204	503110203205	503110203206	503110203215	503110203216	503110203217	503110203218
PP*		JUDKINS LEFT PP (JL 3.0 PP)	JUDKINS LEFT PP (JL 3.5 PP)	JUDKINS LEFT PP (JL 4.0 PP)	JUDKINS LEFT PP (JL 4.5 PP)	JUDKINS LEFT PP (JL 5.0 PP)	JUDKINS LEFT PP (JL 6.0 PP)	JUDKINS LEFT ST PP (JL 3.5 ST PP)	JUDKINS LEFT ST PP (JL 4.0 ST PP)	JUDKINS LEFT ST PP (JL 4.5 ST PP)	JUDKINS LEFT ST PP (JL 5.0 ST PP)
	5F	503110202307	503110202308	503110202309	503110202310	503110202311	503110202312	503110202319	503110202320	503110202321	503110202322
	6F	503110202607	503110202608	503110202609	503110202610	503110202611	503110202612	503110202619	503110202620	503110202621	503110202622
	7F	503110202907	503110202908	503110202909	503110202910	503110202911	503110202912	503110202919	503110202920	503110202921	503110202922
	8F	503110203207	503110203208	503110203209	503110203210	503110203211	503110203212	503110203219	503110203220	503110203221	503110203222

		JUDKINS LEFT CURVED (JLC 3.5)	JUDKINS LEFT CURVED (JLC 4.0)	JUDKINS LEFT CURVED (JLC 4.5)	JUDKINS LEFT CURVED (JLC 5.0)	JUDKINS LEFT MOD. (JL 4.0 MOD)
5 Pack
	5F	503110202323	503110202324	503110202325	503110202326	503110202313
	6F	503110202623	503110202624	503110202625	503110202626	503110202613
	7F	503110202923	503110202924	503110202925	503110202926	503110202913
	8F	503110203223	503110203224	503110203225	503110203226	503110203213
PP*		JUDKINS LEFT CURVED PP (JLC 3.5 PP)	JUDKINS LEFT CURVED PP (JLC 4.0 PP)	JUDKINS LEFT CURVED PP (JLC 4.5 PP)	JUDKINS LEFT CURVED PP (JLC 5.0 PP)	JUDKINS LEFT MOD. PP (JL 4.0 MOD PP)
	5F	503110202327	503110202328	503110202329	503110202330	503110202314
	6F	503110202627	503110202628	503110202629	503110202630	503110202614
	7F	503110202927	503110202928	503110202929	503110202930	503110202914
	8F	503110203227	503110203228	503110203229	503110203230	503110203214

AMPLATZ LEFT

		AMPLATZ LEFT (AL 0.75)	AMPLATZ LEFT (AL 1.0)	AMPLATZ LEFT (AL 1.2)	AMPLATZ LEFT (AL 1.5)	AMPLATZ LEFT (AL 2.0)	AMPLATZ LEFT (AL 3.0)	AMPLATZ LEFT ST (AL 1.0 ST)	AMPLATZ LEFT ST (AL 1.5 ST)	AMPLATZ LEFT ST (AL 2.0 ST)	AMPLATZ LEFT ST (AL 3.0 ST)

5 Pack
	5F	503110202355	503110202356	503110202357	503110202358	503110202359	503110202360	503110202367	503110202368	503110202369	503110202370
	6F	503110202655	503110202656	503110202657	503110202658	503110202659	503110202660	503110202667	503110202668	503110202669	503110202670
	7F	503110202955	503110202956	503110202957	503110202958	503110202959	503110202960	503110202967	503110202968	503110202969	503110202970
	8F	503110203255	503110203256	503110203257	503110203258	503110203259	503110203260	503110203267	503110203268	503110203269	503110203270
PP*		AMPLATZ LEFT PP (AL 0.75 PP)	AMPLATZ LEFT PP (AL 1.0 PP)	AMPLATZ LEFT PP (AL 1.2 PP)	AMPLATZ LEFT PP (AL 1.5 PP)	AMPLATZ LEFT PP (AL 2.0 PP)	AMPLATZ LEFT PP (AL 3.0 PP)	AMPLATZ LEFT PP (AL 1.0 ST PP)	AMPLATZ LEFT PP (AL 1.5 ST PP)	AMPLATZ LEFT PP (AL 2.0 ST PP)	AMPLATZ LEFT PP (AL 3.0 ST PP)
	5F	503110202361	503110202362	503110202363	503110202364	503110202365	503110202366	503110202371	503110202372	503110202373	503110202374
	6F	503110202661	503110202662	503110202663	503110202664	503110202665	503110202666	503110202671	503110202672	503110202673	503110202674
	7F	503110202961	503110202962	503110202963	503110202964	503110202965	503110202966	503110202971	503110202972	503110202973	503110202974
	8F	503110203261	503110203262	503110203263	503110203264	503110203265	503110203266	503110203271	503110203272	503110203273	503110203274

AMPLATZ RIGHT

		AMPLATZ RIGHT (AR 1.0)	AMPLATZ LEFT RIGHT (AR 1.2)	AMPLATZ RIGHT (AR 2.0)	AMPLATZ RIGHT (AR 3.0)

5 Pack
	5F	503110202375	503110202381	503110202376	503110202377
	6F	503110202675	503110202681	503110202676	503110202677
	7F	503110202975	503110202981	503110202976	503110202977
	8F	503110203275	503110203281	503110203276	503110203277
PP*		AMPLATZ RIGHT PP (AR 1.0 PP)	AMPLATZ LEFT RIGHT PP (AR 1.2 PP)	AMPLATZ RIGHT PP (AR 2.0 PP)	AMPLATZ RIGHT PP (AR 3.0 PP)
	5F	503110202378	503110202382	503110202379	503110202380
	6F	503110202678	503110202682	503110202679	503110202680
	7F	503110202978	503110202982	503110202979	503110202980
	8F	503110203278	503110203282	503110203279	503110203280

MULTIPURPOSE

		MULTI-PURPOSE (MP A1)	MULTI-PURPOSE (MP B1)

5 Pack
	5F	503110202406	503110202408
	6F	503110202706	503110202708
	7F	503110203006	503110203008
	8F	503110203306	503110203308
PP*		MULTI-PURPOSE PP (MP A1 PP)	MULTI-PURPOSE PP (MP B1 PP)
	5F	503110202407	503110202409
	6F	503110202707	503110202709
	7F	503110203007	503110203009
	8F	503110203307	503110203309
