CORONARY ANGIOGRAPHIC DIAGNOSTIC CATHETER

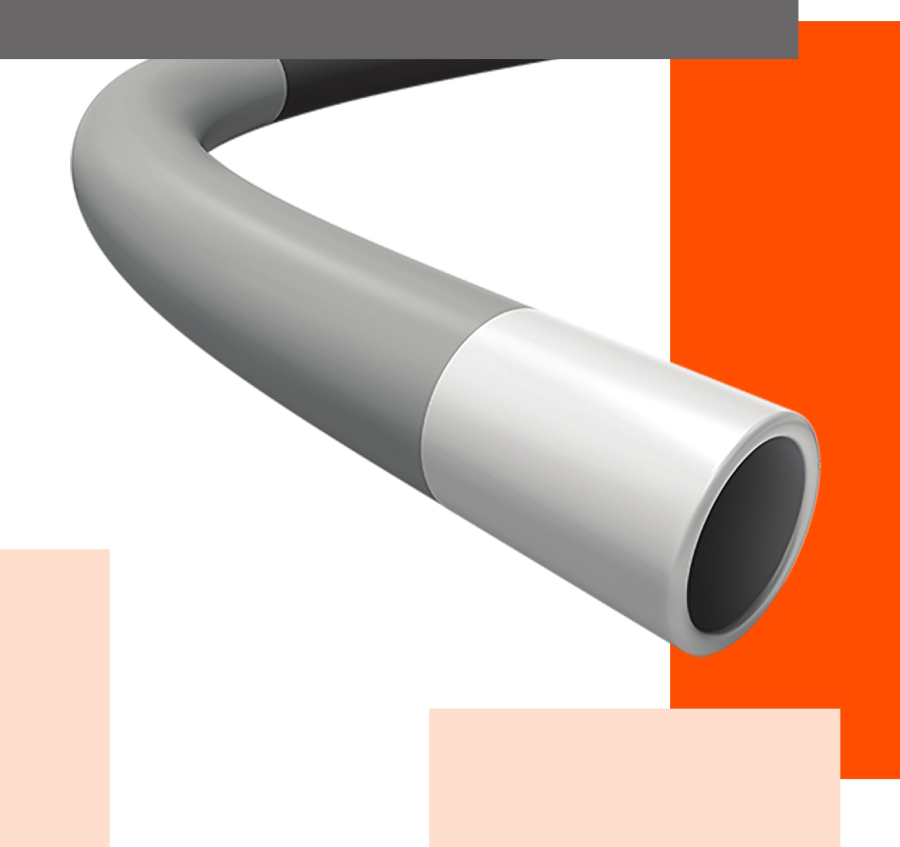

Alvision Catheter
  • Outstanding torque response and catheter stability due to Flat Wire Braid design
  • Large inner lumens allow for superior visualization
  • Wide choice of shapes to master every challenge

ORDER INFORMATION ALVISION™ (continued)

KAPLAN & KAPLAN JS
Kaplan 4.0 Kaplan 4.5 Kaplan JS 3.5 Kaplan JS 4.0
KAPLAN 4.0 PPKAPLAN 4.5 PPKAPLAN JS 3.5 PPKAPLAN JS 4.0 PP
5 Pack
LengthØ
 100 cm100 cm100 cm100 cm
5F501110019301501110019302501110019304501110019303
6F501110019305501110019306501110019308501110019307
5 Pack
LengthØ
 110 cm110 cm110 cm110 cm
5F501110019309501110019310501110019312501110019311
6F501110019313501110019314501110019316501110019315
ATESAL
Atesal 3.5 Atesal 4.0 Atesal 4.5
ATESAL 3.5ATESAL 4.0ATESAL 4.5
5 Pack
LengthØ
 100 cm100 cm100 cm
4F501110019641501110019640501110019642
5F501110019740501110019741501110019742
6F501110019840501110019841501110019842
7F*501110019941501110019940501110019942
KAPLAN MOD I
KAPLAN MOD I 4.0 PPKAPLAN MOD I 4.5 PPKAPLAN MOD I 5.0 PP
5 Pack
LengthØ
 100 cm100 cm100 cm
5F501110019786501110019787501110019890
6F501110019888501110019889501110019790
5 Pack
LengthØ
 110 cm110 cm110 cm
5F501110019893501110019894501110019892
6F501110019793501110019794501110019792
KAPLAN MOD II
KAPLAN MOD II 4.0 PPKAPLAN MOD II 4.5 PPKAPLAN MOD II 5.0 PP
5 Pack
LengthØ
 100 cm100 cm100 cm
5F501110019886501110019887501110019891
6F501110019788501110019789501110019791
5 Pack
LengthØ
 110 cm110 cm110 cm
5F501110019896501110019897501110019895
6F501110019796501110019797501110019795

PP = PRO PERFUSION - curves with sideholes

Kaplan MOD I and II: one frontal side hole | Kaplan PP: one frontal side hole | Kaplan JS PP: two lateral side holes

* Check with your sales representative for availability

ORDER INFORMATION ALVISION™ (continued)

CORONARY BYPASS
Coronary Bypass Left Coronary Bypass Right
CORONARY
BYPASS LEFT
(LCB)		 CORONARY
BYPASS RIGHT
(RCB)
5 Pack
LengthØ
 100 cm 100 cm
4F501110019621501110019622
5F501110019721501110019722
6F501110019821501110019822
7F*501110019921501110019922
CORONARY BYPASS GRAFT
Coronary Bypass Graft Left Coronary Bypass Graft Right
CORONARY
BYPASS GRAFT
LEFT		 CORONARY
BYPASS GRAFT
RIGHT
5 Pack
LengthØ
 100 cm 100 cm
4F501110019652501110019651
5F501110019752501110019751
6F501110019852501110019851
7F*501110019952501110019951
INTERNAL MAMMARY
Internal Mammary
INTERNAL
MAMMARY
(IMA)
5 Pack
LengthØ
 100 cm
4F501110019623
5F501110019723
6F501110019823
7F*501110019923

* Check with your sales representative for availability

TECHNICAL DATA

Category:Interventional cardiology diagnostic catheters
Diameters:4F, 5F, 6F and 7F
Shaft:Multi-segments (with variable stiffness)
Proximal shaft material:Braided Nylon
Braiding:Stainless steel flat wires
Distal shaft material:Radiopaque PEBA
Tip material:Soft PEBA with radiopaque Barium Sulfate
Guidewire compatibility:0.038"
Maximum pressure:1200psi

Flow Rate

CATHETER PRESSURE
SIZE CURVE ID LENGTH 300PSI 600PSI 900PSI 1200PSI
4F Selective 0.042" 100 cm 11ml/s 15ml/s 18ml/s 22ml/s
Pigtail 0.042" 110 cm 11ml/s 15ml/s 19ml/s 22ml/s
Selective 0.042" 125 cm 10ml/s 14ml/s 17ml/s 20ml/s
Pigtail 0.042" 125 cm 10ml/s 14ml/s 17ml/s 21ml/s
Selective 0.042" 80 cm 12ml/s 16ml/s 20ml/s 24ml/s
5F Selective 0.047" 100 cm 14ml/s 19ml/s 24ml/s 28ml/s
Pigtail 0.047" 110 cm 14ml/s 19ml/s 25ml/s 28ml/s
Selective 0.047" 110 cm 13ml/s 18ml/s 24ml/s 26ml/s
Selective 0.047" 125 cm 13ml/s 17ml/s 22ml/s 25ml/s
Pigtail 0.047" 125 cm 13ml/s 18ml/s 23ml/s 26ml/s
Selective 0.047" 80 cm 15ml/s 21ml/s 26ml/s 30ml/s
6F Selective 0.057" 100 cm 23ml/s 33ml/s 39ml/s 41ml/s
Pigtail 0.054" 110 cm 21ml/s 29ml/s 35ml/s 37ml/s
Selective 0.057" 110 cm 23ml/s 32ml/s 38ml/s 41ml/s
Selective 0.057" 125 cm 21ml/s 30ml/s 35ml/s 37ml/s
Pigtail 0.054" 125 cm 19ml/s 27ml/s 33ml/s 36ml/s
Selective 0.057" 80 cm 26ml/s 36ml/s 41ml/s 45ml/s
7F Selective 0.070" 100 cm 38ml/s 45ml/s 45ml/s 45ml/s
Pigtail 0.067" 110 cm 35ml/s 45ml/s 45ml/s 45ml/s
Selective 0.070" 80 cm 43ml/s 45ml/s 45ml/s 45ml/s
JUDKINS LEFT
JL 3.0 JL 3.5 JL 4.0 JL 4.5 JL 5.0 JL 6.0 JL 4.0 ST
JUDKINS LEFT
(JL 3.0)		 JUDKINS LEFT
(JL 3.5)		 JUDKINS LEFT
(JL 4.0)		 JUDKINS LEFT
(JL 4.5)		 JUDKINS LEFT
(JL 5.0)		 JUDKINS LEFT
(JL 6.0)		 JUDKINS LEFT ST
(JL 4.0 ST)
5 Pack
LengthØ
 100 cm 100 cm 100 cm 100 cm 100 cm 100 cm 100 cm
4F501110019601501110019602501110019603501110019605501110019606501110019607501110019604
5F501110019701501110019702501110019704501110019705501110019706501110019707501110019703
6F501110019801501110019802501110019803501110019805501110019806501110019807501110019804
7F*501110019901501110019902501110019903501110019905501110019906501110019907501110019904
5 Pack
LengthØ
 125 cm 125 cm 125 cm
4F501110019502501110019503501110019501
5F501110019507501110019508501110019509
6F501110019513501110019514501110019515
JUDKINS RIGHT
JR 3.0 JR 3.5 JR 4.0 JR 4.5 JR 5.0 JR 6.0
JUDKINS RIGHT
(JR 3.0)		 JUDKINS RIGHT
(JR 3.5)		 JUDKINS RIGHT
(JR 4.0)		 JUDKINS RIGHT
(JR 4.5)		 JUDKINS RIGHT
(JR 5.0)		 JUDKINS RIGHT
(JR 6.0)
5 Pack
LengthØ
 100 cm 100 cm 100 cm 100 cm 100 cm 100 cm
4F501110019608501110019609501110019610501110019611501110019612501110019613
5F501110019708501110019709501110019711501110019710501110019712501110019713
6F501110019808501110019809501110019810501110019811501110019812501110019813
7F*501110019908501110019909501110019910501110019911501110019912501110019913
5 Pack
LengthØ
 125 cm 125 cm 125 cm
4F501110019504501110019505501110019506
5F501110019510501110019511501110019512
6F501110019516501110019517501110019518
AMPLATZ LEFT
AL 1 AL 2 AL 3
AMPLATZ LEFT (AL 1) AMPLATZ LEFT (AL 2) AMPLATZ LEFT (AL 3)
5 Pack
LengthØ
 100 cm100 cm100 cm
4F501110019614501110019615501110019616
5F501110019714501110019715501110019716
6F501110019814501110019815501110019816
7F*501110019914501110019915501110019916
AMPLATZ RIGHT
AR 1 AR 2 AR 3 AR MOD B
AMPLATZ RIGHT (AR 1) AMPLATZ RIGHT (AR 2) AMPLATZ RIGHT (AR 3) AMPLATZ RIGHT MOD B
5 Pack
LengthØ
 100 cm100 cm100 cm100 cm
4F501110019617501110019618501110019619501110019620
5F501110019717501110019718501110019719501110019720
6F501110019817501110019818501110019819501110019820
7F*501110019917501110019918501110019919501110019920
PIGTAIL
PIGTAIL STRAIGHT PIGTAIL 145° PIGTAIL 155°
5 Pack
LengthØ
 110 cm110 cm110 cm
4F501110019637501110019638501110019639
5F501110019737501110019738501110019739
6F501110019837501110019838501110019839
7F*501110019937501110019938501110019939
5 Pack
LengthØ
 125 cm125 cm125 cm
4F501110019525501110019519501110019520
5F501110019526501110019521501110019522
6F501110019527501110019523501110019524
MULTIPURPOSE
MP AMP A PPMP BMP B PP
5 Pack
LengthØ
 100 cm100 cm100 cm100 cm
4F501110019624501110019625501110019626501110019627
5F501110019724501110019725501110019726501110019727
6F501110019824501110019825501110019826501110019827
7F*501110019924501110019925501110019926501110019927
SONES
Sones I Sones II Sones III Sones I 80 Sones II 80 Sones III 80
SONES I
(SON I)		SONES II
(SON II)		SONES III
(SON III)		 SONES I
(SON I)		SONES II
(SON II)		SONES III
(SON III)
5 Pack
LengthØ
 100 cm 80 cm
4F501110019628501110019629501110019630501110019631501110019632501110019633
5F501110019728501110019729501110019730501110019731501110019732501110019733
6F501110019828501110019829501110019830501110019831501110019832501110019833
7F*501110019928501110019929501110019930501110019931501110019932501110019933
5 Pack
 PP SONES I PPSONES II PPSONES III PP
4F501110019634501110019635501110019636
5F501110019734501110019735501110019736
6F501110019834501110019835501110019836
7F*501110019934501110019935501110019936
Q4
Q4
5 Pack
LengthØ
100 cm
4F501110019647
5F501110019747
6F501110019847
7F*501110019947
HOCKEY STICK
HOCKEY STICK
5 Pack
LengthØ
100 cm
4F501110019643
5F501110019743
6F501110019843
7F*501110019943
MOD. EXTRA BACK UP
MOD. EXTRA BACK UP
5 Pack
LengthØ
100 cm
4F501110019648
5F501110019748
6F501110019848
7F*501110019948
PROGRESSIVE RIGHT
PROGRESSIVE RIGHT
5 Pack
LengthØ
100 cm
4F501110019644
5F501110019744
6F501110019844
7F*501110019944

PP = PRO PERFUSION - curves with sideholes | ST = SHORT TIP

* Check with your sales representative for availability

DOWNLOAD FULL ALVISION™ CATALOGUE (PDF)
