Mindray Hip & Knee Catalogue

MH Acetabular Cup Tri-holes

Materials: Titanium Alloy + Titanium

REF	REF(Pre)	Outer/Inner (mm)	Inner Dia (mm)	Outer Dia (mm)
J2040-1-3832	F13AB-PA04913	38/32	32	38
J2040-1-4032	F13AB-PA04914	40/32	32	40
J2040-1-4234	F13AB-PA04915	42/34	34	42
J2040-1-4436	F13AB-PA00503	44/36	36	44
J2040-1-4638	F13AB-PA00504	46/38	38	46
J2040-1-4840	F13AB-PA00505	48/40	40	48
J2040-1-5042	F13AB-PA00506	50/42	42	50
J2040-1-5244	F13AB-PA00507	52/44	44	52
J2040-1-5446	F13AB-PA00508	54/46	46	54
J2040-1-5648	F13AB-PA00509	56/48	48	56
J2040-1-5850	F13AB-PA00510	58/50	50	58
J2040-1-6052	F13AB-PA00511	60/52	52	60
J2040-1-6254	F13AB-PA00512	62/54	54	62
J2040-1-6454	F13AB-PA00513	64/54	54	64
J2040-1-6656	F13AB-PA04916	66/56	56	66
J2040-1-6858	F13AB-PA04917	68/58	58	68
J2040-1-7060	F13AB-PA04918	70/60	60	70
J2040-1-7260	F13AB-PA04919	72/60	60	72
J2040-1-7460	F13AB-PA04920	74/60	60	74
J2040-1-7666	F13AB-PA04921	76/66	66	76
J2040-1-7866	F13AB-PA04922	78/66	66	78
J2040-1-8066	F13AB-PA04923	80/66	66	80

MH Acetabular Cup Multi-holes

Materials: Titanium Alloy + Titanium

REF	REF(Pre)	Specification	Inner Dia (mm)	Outer Dia (mm)
J2050-1-4032	J2050-1-4032	40/32	32	40
J2050-1-4234	J2050-1-4234	42/34	34	42
J2050-1-4436	J2050-1-4436	44/36	36	44
J2050-1-4638	J2050-1-4638	46/38	38	46
J2050-1-4840	J2050-1-4840	48/40	40	48
J2050-1-5042	J2050-1-5042	50/42	42	50
J2050-1-5244	J2050-1-5244	52/44	44	52
J2050-1-5446	J2050-1-5446	54/46	46	54
J2050-1-5648	J2050-1-5648	56/48	48	56
J2050-1-5850	J2050-1-5850	58/50	50	58
J2050-1-6052	J2050-1-6052	60/52	52	60
J2050-1-6254	J2050-1-6254	62/54	54	62
J2050-1-6454	J2050-1-6454	64/54	54	64
J2050-1-6656	J2050-1-6656	66/56	56	66
J2050-1-6858	J2050-1-6858	68/58	58	68
J2050-1-7060	J2050-1-7060	70/60	60	70
J2050-1-7260	J2050-1-7260	72/60	60	72
J2050-1-7460	J2050-1-7460	74/60	60	74
J2050-1-7666	J2050-1-7666	76/66	66	76
J2050-1-7866	J2050-1-7866	78/66	66	78
J2050-1-8066	J2050-1-8066	80/66	66	80

MH Acetabular Cup Type VI

Materials: Titanium alloy + Titanium + HA

REF	REF(Pre)	Specification	Inner Dia (mm)	Outer Dia (mm)
J2051-1-3832	J2051-1-3832	38/32	32	38
J2051-1-4032	J2051-1-4032	40/32	32	40
J2051-1-4234	J2051-1-4234	42/34	34	42
J2051-1-4436	J2051-1-4436	44/36	36	44
J2051-1-4638	J2051-1-4638	46/38	38	46
J2051-1-4840	J2051-1-4840	48/40	40	48
J2051-1-5042	J2051-1-5042	50/42	42	50
J2051-1-5244	J2051-1-5244	52/44	44	52
J2051-1-5446	J2051-1-5446	54/46	46	54
J2051-1-5648	J2051-1-5648	56/48	48	56
J2051-1-5850	J2051-1-5850	58/50	50	58
J2051-1-6052	J2051-1-6052	60/52	52	60
J2051-1-6254	J2051-1-6254	62/54	54	62
J2051-1-6454	J2051-1-6454	64/54	54	64
J2051-1-6656	J2051-1-6656	66/56	56	66
J2051-1-6858	J2051-1-6858	68/58	58	68
J2051-1-7060	J2051-1-7060	70/60	60	70
J2051-1-7260	J2051-1-7260	72/60	60	72
J2051-1-7460	J2051-1-7460	74/60	60	74
J2051-1-7666	J2051-1-7666	76/66	66	76
J2051-1-7866	J2051-1-7866	78/66	66	78
J2051-1-8066	J2051-1-8066	80/66	66	80

MH 3D-print Acetabular Cup (Tri-Holes VII)

Materials: Titanium alloy

REF	REF(Pre)	Specification	Inner Dia (mm)	Outer Dia (mm)
J2009-1-40	J2009-1-40	40/32	32	40
J2009-1-42	J2009-1-42	42/32	32	42
J2009-1-44	J2009-1-44	44/34	34	44
J2009-1-46	J2009-1-46	46/36	36	46
J2009-1-48	J2009-1-48	48/38	38	48
J2009-1-50	J2009-1-50	50/40	40	50
J2009-1-52	J2009-1-52	52/42	42	52
J2009-1-54	J2009-1-54	54/44	44	54
J2009-1-56	J2009-1-56	56/46	46	56
J2009-1-58	J2009-1-58	58/48	48	58
J2009-1-60	J2009-1-60	60/50	50	60
J2009-1-62	J2009-1-62	62/52	52	62
J2009-1-64	J2009-1-64	64/54	54	64
J2009-1-66	J2009-1-66	66/54	54	66
J2009-1-68	J2009-1-68	68/56	56	68
J2009-1-70	J2009-1-70	70/58	58	70
J2009-1-72	J2009-1-72	72/60	60	72

MH 3D-print Acetabular Cup (Multi-Holes VII)

Materials: Titanium alloy

REF	REF(Pre)	Specification	Inner Dia (mm)	Outer Dia (mm)
J2010-1-50	J2010-1-50	50/40	40	50
J2010-1-52	J2010-1-52	52/42	42	52
J2010-1-54	J2010-1-54	54/44	44	54
J2010-1-56	J2010-1-56	56/46	46	56
J2010-1-58	J2010-1-58	58/48	48	58
J2010-1-60	J2010-1-60	60/50	50	60
J2010-1-62	J2010-1-62	62/52	52	62
J2010-1-64	J2010-1-64	64/54	54	64
J2010-1-66	J2010-1-66	66/54	54	66
J2010-1-68	J2010-1-68	68/56	56	68
J2010-1-70	J2010-1-70	70/58	58	70
J2010-1-72	J2010-1-72	72/60	60	72

MH 3D-print Acetabular Cup (Multi-Holes VII)

MH Acetabular Liner

Materials: UHMWPE

REF	REF (Pre)	Outer Dia (mm)	Inner Dia (mm)
J2029-1-3628	F13AB-PA00493	36	28
J2029-1-3828	F13AB-PA00494	38	28
J2029-1-4032	F13AB-PA00495	40	32
J2029-1-4232	F13AB-PA00496	42	32
J2029-1-4432	F13AB-PA00497	44	32
J2029-1-4632	F13AB-PA00498	46	32
J2029-1-4832	F13AB-PA00499	48	32
J2029-1-5032	F13AB-PA00500	50	32
J2029-1-5232	F13AB-PA00501	52	32
J2029-1-5432	F13AB-PA00502	54	32

MH Acetabular Liner XLPE II

Materials: High Cross Linked Polyethylene

REF	REF (Pre)	Specification	Inner Dia (mm)	Outer Dia (mm)
J2064-1-3222	J2064-1-3222	22.2/32	22.2	32
J2064-1-3422	J2064-1-3422	22.2/34	22.2	34
J2064-1-3628	J2064-1-3628	28/36	28	36
J2064-1-3828	J2064-1-3828	28/38	28	38
J2064-1-4032	J2064-1-4032	32/40	32	40
J2064-1-4232	J2064-1-4232	32/42	32	42
J2064-1-4432	J2064-1-4432	32/44	32	44
J2064-1-4632	J2064-1-4632	32/46	32	46
J2064-1-4436	J2064-1-4436	36/44	36	44
J2064-1-4636	J2064-1-4636	36/46	36	46
J2064-1-4836	J2064-1-4836	36/48	36	48
J2064-1-5036	J2064-1-5036	36/50	36	50
J2064-1-5236	J2064-1-5236	36/52	36	52
J2064-1-5436	J2064-1-5436	36/54	36	54
J2064-1-5636	J2064-1-5636	36/56	36	56
J2064-1-5836	J2064-1-5836	36/58	36	58
J2064-1-6036	J2064-1-6036	36/60	36	60
J2064-1-6636	J2064-1-6636	36/66	36	66

MH Acetabular Liner XLPE

Materials: High Cross Linked Polyethylene

REF	REF (Pre)	Specification	Inner Dia (mm)	Outer Dia (mm)
J2001-1-3222	J2001-1-3222	22.2/32	22.2	32
J2001-1-3422	J2001-1-3422	22.2/34	22.2	34
J2001-1-3628	J2001-1-3628	28/36	28	36
J2001-1-3828	J2001-1-3828	28/38	28	38
J2001-1-4032	J2001-1-4032	32/40	32	40
J2001-1-4232	J2001-1-4232	32/42	32	42
J2001-1-4432	J2001-1-4432	32/44	32	44
J2001-1-4632	J2001-1-4632	32/46	32	46
J2001-1-4436	J2001-1-4436	36/44	36	44
J2001-1-4636	J2001-1-4636	36/46	36	46
J2001-1-4836	J2001-1-4836	36/48	36	48
J2001-1-5036	J2001-1-5036	36/50	36	50
J2001-1-5236	J2001-1-5236	36/52	36	52
J2001-1-5436	J2001-1-5436	36/54	36	54
J2001-1-5636	J2001-1-5636	36/56	36	56
J2001-1-5836	J2001-1-5836	36/58	36	58
J2001-1-6036	J2001-1-6036	36/60	36	60
J2001-1-6636	J2001-1-6636	36/66	36	66

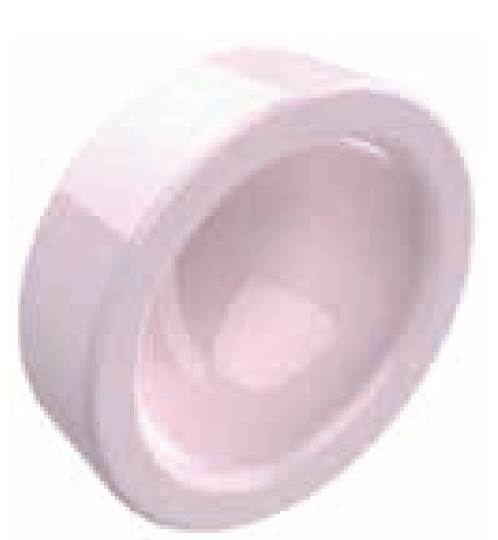

MH Ceramic Liner

Materials: Ceramic

REF	REF (Pre)	Specification	Inner Dia (mm)	Outer Dia (mm)
J2098-1-3628	J2098-1-3628	28/36	28	36
J2098-1-3828	J2098-1-3828	28/38	28	38
J2098-1-4028	J2098-1-4028	28/40	28	40
J2098-1-4032	J2098-1-4032	32/40	32	40
J2098-1-4232	J2098-1-4232	32/42	32	42
J2098-1-4432	J2098-1-4432	32/44	32	44
J2098-1-4436	J2098-1-4436	36/44	36	44
J2098-1-4636	J2098-1-4636	36/46	36	46
J2098-1-4836	J2098-1-4836	36/48	36	48
J2098-1-5036	J2098-1-5036	36/50	36	50
J2098-1-5236	J2098-1-5236	36/52	36	52
J2098-1-5436	J2098-1-5436	36/54	36	54

MH Plug-Bottom Hole

Materials: Titanium Alloy

REF	REF(Pre)	Diameter(mm)	Length(mm)
J2030-1-1004	F13AB-PA00514	10	4

MH Plug -Screw Hole

Materials: Titanium Alloy

REF	REF(Pre)	Diameter(mm)	Length(mm)
J2031-1-0803	F13AB-PA00515	8	3

Screw for Acetabular Cup

Materials: Titanium Alloy

REF	REF(Pre)	Specification	Diameter (mm)	Length (mm)
J2012-1-6315	F13AB-PA00651	6.3×15	6.3	15
J2012-1-6320	F13AB-PA00128	6.3×20	6.3	20
J2012-1-6325	F13AB-PA00129	6.3×25	6.3	25
J2012-1-6330	F13AB-PA00130	6.3×30	6.3	30
J2012-1-6335	F13AB-PA00131	6.3×35	6.3	35
J2012-1-6340	F13AB-PA00539	6.3×40	6.3	40
J2012-1-6345	F13AB-PA00780	6.3×45	6.3	45
J2012-1-6350	F13AB-PA00781	6.3×50	6.3	50
J2012-1-6355	F13AB-PA00782	6.3×55	6.3	55
J2012-1-6360	F13AB-PA00783	6.3×60	6.3	60
J2012-1-6365	F13AB-PA00784	6.3×65	6.3	65
J2012-1-6370	F13AB-PA00785	6.3×70	6.3	70

Screw for Acetabular Cup

Materials: TC4

*Note: These products are only available in selected countries. Please consult local sales for details.

TCN	REF	Diameter(mm)	Length(mm)
T-03-2311002-BT	F13AB-PA00128	6.3	20
T-03-2311002-BU	F13AB-PA00129	6.3	25
T-03-2311002-BV	F13AB-PA00130	6.3	30
T-03-2311002-BW	F13AB-PA00131	6.3	35

Acetabular Component

Materials: Titanium alloy + Titanium +HA+UHMWPE

REF	REF(Pre)	Outer diameter (mm)	Inner diameter (mm)
J2027-1-42	F13AB-PA00009	42	24
J2027-1-44	F13AB-PA00010	44	24
J2027-1-46	F13AB-PA00011	46	24
J2027-1-48	F13AB-PA00012	48	28
J2027-1-50	F13AB-PA00013	50	28
J2027-1-52	F13AB-PA00014	52	28
J2027-1-54	F13AB-PA00015	54	28
J2027-1-56	F13AB-PA00016	56	28
J2027-1-58	F13AB-PA00017	58	28
J2027-1-60	F13AB-PA00018	60	28
J2027-1-62	F13AB-PA00019	62	28

Acetabular Component

Materials: Wrought TC4+UHMWPE Coating: Ti+HA

*Note: These products are only available in selected countries. Please consult local sales for details.

TCN	REF	Outer diameter (mm)	Inner diameter (mm)
T-03-2311002-AA	F13AB-PA00610	42	24
T-03-2311002-AB	F13AB-PA00611	44	24
T-03-2311002-AC	F13AB-PA00612	46	24
T-03-2311002-AD	F13AB-PA00613	48	28
T-03-2311002-AE	F13AB-PA00614	50	28
T-03-2311002-AF	F13AB-PA00615	52	28
T-03-2311002-AG	F13AB-PA00616	54	28
T-03-2311002-AH	F13AB-PA00617	56	28
T-03-2311002-AJ	F13AB-PA00618	58	28
T-03-2311002-AK	F13AB-PA00619	60	28
T-03-2311002-AL	F13AB-PA00620	62	28

All-Polyethylene Cup

Materials: UHMWPE+Stainless Steel

REF	REF(Pre)	Specification	Inner diameter (mm)	Outer diameter (mm)
J2038-1-4228	F13AB-PA00001	42/28	28	42
J2038-1-4428	F13AB-PA00002	44/28	28	44
J2038-1-4628	F13AB-PA00003	46/28	28	46
J2038-1-4828	F13AB-PA00004	48/28	28	48
J2038-1-5028	F13AB-PA00005	50/28	28	50
J2038-1-5228	F13AB-PA00006	52/28	28	52
J2038-1-5428	F13AB-PA00007	54/28	28	54
J2038-1-5628	F13AB-PA00008	56/28	28	56
J2038-1-4632	F13AB-PA00734	46/32	32	46
J2038-1-4832	F13AB-PA00735	48/32	32	48
J2038-1-5032	F13AB-PA00736	50/32	32	50
J2038-1-5232	F13AB-PA00737	52/32	32	52
J2038-1-5432	F13AB-PA00738	54/32	32	54
J2038-1-5632	F13AB-PA00739	56/32	32	56
J2038-1-5832	F13AB-PA00740	58/32	32	58
J2038-1-6032	F13AB-PA00741	60/32	32	60
J2038-1-6232	F13AB-PA00742	62/32	32	62

MH 3D-print Acetabular Augment(VII)

Materials: Titanium alloy

REF	REF(Pre)	Specification	Diameter (mm)	Thickness (mm)
J2011-1-5010	J2011-1-5010	50/10	50	10
J2011-1-5015	J2011-1-5015	50/15	50	15
J2011-1-5020	J2011-1-5020	50/20	50	20
J2011-1-5025	J2011-1-5025	50/25	50	25
J2011-1-5410	J2011-1-5410	54/10	54	10
J2011-1-5415	J2011-1-5415	54/15	54	15
J2011-1-5420	J2011-1-5420	54/20	54	20
J2011-1-5425	J2011-1-5425	54/25	54	25
J2011-1-5810	J2011-1-5810	58/10	58	10
J2011-1-5815	J2011-1-5815	58/15	58	15
J2011-1-5820	J2011-1-5820	58/20	58	20
J2011-1-5825	J2011-1-5825	58/25	58	25
J2011-1-6210	J2011-1-6210	62/10	62	10
J2011-1-6215	J2011-1-6215	62/15	62	15
J2011-1-6220	J2011-1-6220	62/20	62	20
J2011-1-6225	J2011-1-6225	62/25	62	25
J2011-1-6610	J2011-1-6610	66/10	66	10
J2011-1-6615	J2011-1-6615	66/15	66	15
J2011-1-6620	J2011-1-6620	66/20	66	20
J2011-1-6625	J2011-1-6625	66/25	66	25
J2011-1-7010	J2011-1-7010	70/10	70	10
J2011-1-7015	J2011-1-7015	70/15	70	15
J2011-1-7020	J2011-1-7020	70/20	70	20
J2011-1-7025	J2011-1-7025	70/25	70	25

Acetabular Component Type III

Materials: Titanium Alloy+HA+UHMWPE

REF	Outer diameter (mm)	Inner diameter (mm)
F13AB-PA00253	44	24
F13AB-PA00254	46	24
F13AB-PA00255	48	28
F13AB-PA00256	50	28
F13AB-PA00257	52	28
F13AB-PA00258	54	28
F13AB-PA00259	56	28
F13AB-PA00260	58	28
F13AB-PA00261	60	28
F13AB-PA00262	62	28

Acetabular Cup Type III

Materials: Titanium Alloy +HA

REF	Outer diameter (mm)	Inner diameter (mm)
J2032-1-44	44	36
J2032-1-46	46	38
J2032-1-48	48	40
J2032-1-50	50	42
J2032-1-52	52	44
J2032-1-54	54	46
J2032-1-56	56	48
J2032-1-58	58	50
J2032-1-60	60	52
J2032-1-62	62	54

Acetabular Cup

Materials: TC4 Forged Coating: Ti 250μm+HA 50μm

REF	Outer diameter (mm)	Inner diameter (mm)
J2036-1-42	42	34
J2036-1-44	44	36
J2036-1-46	46	38
J2036-1-48	48	40
J2036-1-50	50	42
J2036-1-52	52	44
J2036-1-54	54	46
J2036-1-56	56	48
J2036-1-58	58	50
J2036-1-60	60	52
J2036-1-62	62	54

Acetabular Insert

Materials: UHMWPE

REF	Outer diameter (mm)	Inner diameter (mm)
J2037-1-3424	34	24
J2037-1-3624	36	24
J2037-1-3824	38	24
J2037-1-4028	40	28
J2037-1-4228	42	28
J2037-1-4428	44	28
J2037-1-4628	46	28
J2037-1-4828	48	28
J2037-1-5028	50	28
J2037-1-5228	52	28
J2037-1-5428	54	28

MH Centralizer V

Materials: UHMWPE

REF	REF(Pre)	Diameter(mm)
J2015-1-20	J2015-1-20	20

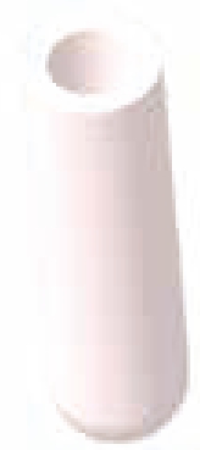

MH Centralizer I

Materials: UHMWPE

REF	REF(Pre)	Diameter(mm)
J2045-1-7	J2045-1-7	7

Cement Restrictor

Materials: UHMWPE

REF	REF(Pre)	Length(mm)
J2019-1-18	J2019-1-18	6
J2019-1-6	J2019-1-6	8
J2019-1-8	J2019-1-8	10
J2019-1-10	J2019-1-10	12
J2019-1-12	J2019-1-12	14
J2019-1-14	J2019-1-14	16
J2019-1-16	J2019-1-16	18
J2019-1-20	J2019-1-20	20

Cement Restrictor-Type II

Materials: UHMWPE

REF	REF(Pre)	Specification	Length(mm)
J2059-1-12	J2059-1-12	12	12
J2059-1-14	J2059-1-14	14	14
J2059-1-16	J2059-1-16	16	16
J2059-1-18	J2059-1-18	18	18
J2059-1-20	J2059-1-20	20	20
J2059-1-22	J2059-1-22	22	22
J2059-1-24	J2059-1-24	24	24
J2059-1-26	J2059-1-26	26	26
J2059-1-28	J2059-1-28	28	28
J2059-1-30	J2059-1-30	30	30

Ceramic Head-Delta

Materials: Ceramic

REF	Size (mm)	Neck length(mm)
F13AB-PA00516	28S	-3.5
F13AB-PA00517	28M	0
F13AB-PA00518	28L	+3.5
F13AB-PA00519	32S	-4
F13AB-PA00520	32M	0
F13AB-PA00521	32L	+4
F13AB-PA00522	32XL	+8
F13AB-PA00523	36S	-4
F13AB-PA00524	36M	0
F13AB-PA00525	36L	+4
F13AB-PA00526	36XL	+8

MH Ceramic Head

Materials: Ceramic

REF	REF(Pre)	Specification	Neck length(mm)
J2099-1-28L	J2099-1-28L	28L	-3.5
J2099-1-28M	J2099-1-28M	28M	0
J2099-1-28S	J2099-1-28S	28S	+3.5
J2099-1-32L	J2099-1-32L	32L	-4
J2099-1-32M	J2099-1-32M	32M	0
J2099-1-32S	J2099-1-32S	32S	+4
J2099-1-32XL	J2099-1-32XL	32XL	+8
J2099-1-36L	J2099-1-36L	36L	-4
J2099-1-36M	J2099-1-36M	36M	0
J2099-1-36S	J2099-1-36S	36S	+4
J2099-1-36XL	J2099-1-36XL	36XL	+8

Metal Femoral Head

Materials: CoCrMo

REF	REF(Pre)	Size (mm)	Neck length(mm)
J2039-1-22S	F13AB-PA00898	22.2S	-3.5
J2039-1-22M	F13AB-PA00897	22.2M	0
J2039-1-22L	F13AB-PA00896	22.2L	3.5
J2039-1-24S	F13AB-PA00035	24S	-3.5
J2039-1-24M	F13AB-PA00037	24M	0
J2039-1-24L	F13AB-PA00039	24L	3.5
J2039-1-28S	F13AB-PA00041	28S	-3.5
J2039-1-28M	F13AB-PA00043	28M	0
J2039-1-28L	F13AB-PA00045	28L	3.5
J2039-1-28XL	F13AB-PA00047	28XL	7
J2039-1-28XXL	F13AB-PA00899	28XXL	12
J2039-1-32S	F13AB-PA00353	32S	-4
J2039-1-32M	F13AB-PA00354	32M	0
J2039-1-32L	F13AB-PA00355	32L	4
J2039-1-32XL	F13AB-PA00356	32XL	8
J2039-1-32XXL	F13AB-PA00900	32XXL	12
J2039-1-36S	F13AB-PA00743	36S	-4
J2039-1-36M	F13AB-PA00744	36M	0
J2039-1-36L	F13AB-PA00745	36L	4
J2039-1-36XL	F13AB-PA00746	36XL	8

Metal Femoral Head

Materials: CoCrMo casted

*Note: These products are only available in selected countries. Please consult local sales for details.

TCN	REF	Size (mm)	Neck length(mm)
T-03-2311002-BX	F13AB-PA00035	24S	-3.5
T-03-2311002-BY	F13AB-PA00037	24M	0
T-03-2311002-CA	F13AB-PA00039	24L	3.5
T-03-2311002-CB	F13AB-PA00041	28S	-3.5
T-03-2311002-CC	F13AB-PA00043	28M	0
T-03-2311002-CD	F13AB-PA00045	28L	+3.5
T-03-2311002-CE	F13AB-PA00047	28XL	+7

Ceramic Head-Forte

Materials: Ceramic

REF	Size (mm)	Neck length(mm)
F13AB-PA00031	28-12/14S	-3.5
F13AB-PA00032	28-12/14M	0
F13AB-PA00033	28-12/14L	+3.5

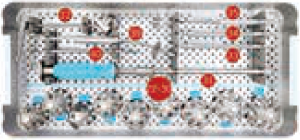

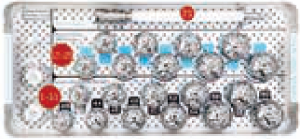

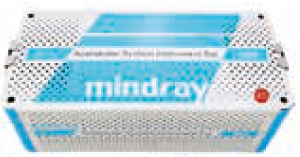

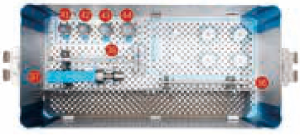

Acetabular System Instrument Set (F16AB-PA00002) - Part 1

REF	Name	Specification	No	Qty
F16AB-PA00026	Reamer Domes Φ42	Φ42	1	1
F16AB-PA00027	Reamer Domes Φ44	Φ44	2	1
F16AB-PA00028	Reamer Domes Φ46	Φ46	3	1
F16AB-PA00029	Reamer Domes Φ48	Φ48	4	1
F16AB-PA00030	Reamer Domes Φ50	Φ50	5	1
F16AB-PA00031	Reamer Domes Φ52	Φ52	6	1
F16AB-PA00032	Reamer Domes Φ54	Φ54	7	1
F16AB-PA00033	Reamer Domes Φ56	Φ56	8	1
F16AB-PA00034	Reamer Domes Φ58	Φ58	9	1
F16AB-PA00035	Reamer Domes Φ60	Φ60	10	1
F16AB-PA00512	Reamer Domes Φ40	Φ40	11	1
F16AB-PA00514	Reamer Domes Φ43	Φ43	12	1
F16AB-PA00515	Reamer Domes Φ45	Φ45	13	1
F16AB-PA00516	Reamer Domes Φ47	Φ47	14	1
F16AB-PA00517	Reamer Domes Φ49	Φ49	15	1
F16AB-PA00518	Reamer Domes Φ51	Φ51	16	1
F16AB-PA00519	Reamer Domes Φ53	Φ53	17	1
F16AB-PA00520	Reamer Domes Φ55	Φ55	18	1
F16AB-PA00521	Reamer Domes Φ57	Φ57	19	1
F16AB-PA00522	Reamer Domes Φ59	Φ59	20	1
F16AB-PA00025	Reamer Handle	/	21	1
F16AB-PA00004	Trial Cup Φ44	Φ44	22	1
F16AB-PA00005	Trial Cup Φ46	Φ46	23	1
F16AB-PA00006	Trial Cup Φ48	Φ48	24	1
F16AB-PA00007	Trial Cup Φ50	Φ50	25	1
F16AB-PA00008	Trial Cup Φ52	Φ52	26	1

Acetabular System Instrument Set (F16AB-PA00002) - Part 2

REF	Name	Specification	No	Qty
F16AB-PA00009	Trial Cup Φ54	Φ54	27	1
F16AB-PA00010	Trial Cup Φ56	Φ56	28	1
F16AB-PA00011	Trial Cup Φ58	Φ58	29	1
F16AB-PA00012	Trial Cup Φ60	Φ60	30	1
F16AB-PA00016	Metal Cup Inserter	/	31	1
F16AB-PA00017	Metal Cup Alignment Guide	/	32	1
F16AB-PA00462	Drill Bit Φ3.2*30	Φ3.2*30	33	1
F16AB-PA00463	Drill Bit Φ3.2*37	Φ3.2*37	34	1
F16AB-PA00019	VA Drill Guide	/	35	1
F16AB-PA00020	Variable Angle StarDrive Screwdriver	/	36	1
F16AB-PA00550	Straight Shank Stardrive Screwdriver	/	36	1
F16AB-PA00529	Ratchet Screwdriver Handle	/	37	1
F16AB-PA00023	Screw Forceps	/	38	1
F16AB-PA00040	Depth Gauge	/	39	1
F16AB-PA00018	Guide Wire	/	40	1
F16AB-PA00021	Liner Inserter 24	24	41	1
F16AB-PA00022	Liner Inserter 28	28	42	1
F16AB-PA00469	Liner Inserter 32	32	43	1
F16AB-PA00510	Liner Inserter 36	36	44	1
F16AB-PA00526	Instrument Case	/	45	1
Total				46

Option (※ are Optional tools)

REF	Name	Specification	No	Qty
F16AB-PA00511	Reamer Domes Φ38	Φ38	※1	1
F16AB-PA00513	Reamer Domes Φ41	Φ41	※2	1
F16AB-PA00523	Reamer Domes Φ61	Φ61	※3	1
F16AB-PA00036	Reamer Domes Φ62	Φ62	※4	1
F16AB-PA00524	Reamer Domes Φ63	Φ63	※5	1
F16AB-PA00525	Reamer Domes Φ64	Φ64	※6	1
F16AB-PA00003	Trial Cup Φ42	Φ42	※7	1
F16AB-PA00013	Trial Cup Φ62	Φ62	※8	1
F16AB-PA00497	Trial Cup Φ64	Φ64	※9	1
F16AB-PA00014	Quick Coupling	/	※10	1
F16AB-PA00024	Poly Cup Inserter	/	※11	1
F16AB-PA00039	Poly Liner Separator	/	※12	1
F16AB-PA00544	Ceramic Liner Extractor	/	※13	1
F16AB-PA00545	Drill Guide	/	※14	1
F16AB-PA00576	Lipped Liner Trial 28/36	28/36	※15	1
F16AB-PA00577	Lipped Liner Trial 28/38	28/38	※16	1
F16AB-PA00578	Lipped Liner Trial 32/40	32/40	※17	1
F16AB-PA00579	Lipped Liner Trial 32/42	32/42	※18	1
F16AB-PA00580	Lipped Liner Trial 32/44	32/44	※19	1
F16AB-PA00581	Lipped Liner Trial 32/46	32/46	※20	1
F16AB-PA00582	Lipped Liner Trial 32/48	32/48	※21	1
F16AB-PA00583	Lipped Liner Trial 32/50	32/50	※22	1
F16AB-PA00584	Lipped Liner Trial 32/52	32/52	※23	1
F16AB-PA00585	Lipped Liner Trial 32/54	32/54	※24	1
F16AB-PA00586	Lipped Liner Trial 36/48	36/48	※25	1
F16AB-PA00587	Lipped Liner Trial 36/50	36/50	※26	1
F16AB-PA00588	Lipped Liner Trial 36/52	36/52	※27	1
F16AB-PA00589	Lipped Liner Trial 36/54	36/54	※28	1

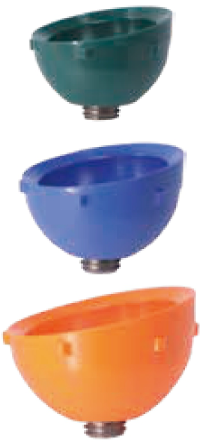

F16AB-PA00590	Sloped Liner Trial 28/36	28/36	※29	1
F16AB-PA00591	Sloped Liner Trial 28/38	28/38	※30	1
F16AB-PA00592	Sloped Liner Trial 32/40	32/40	※31	1
F16AB-PA00593	Sloped Liner Trial 32/42	32/42	※32	1
F16AB-PA00594	Sloped Liner Trial 36/44	36/44	※33	1
F16AB-PA00595	Sloped Liner Trial 36/46	36/46	※34	1
F16AB-PA00599	Drill Bit Φ3.2*43	Φ3.2*43	※35	1
F16AB-PA00600	Handle With Quick Coupling	/	※36	1

MH Hip Joint Instrument Upgrade Set (F16AB-PA00470)

REF	Name	Specification	No	Qty
F16AB-PA00465	Trial Femoral Head 32S	32S	1	1
F16AB-PA00466	Trial Femoral Head 32M	32M	2	1
F16AB-PA00467	Trial Femoral Head 32L	32L	3	1
F16AB-PA00468	Trial Femoral Head 32XL	32XL	4	1
F16AB-PA00498	Trial Femoral Head 36S	36S	5	1
F16AB-PA00499	Trial Femoral Head 36M	36M	6	1
F16AB-PA00500	Trial Femoral Head 36L	36L	7	1
F16AB-PA00501	Trial Femoral Head 36XL	36XL	8	1
F16AB-PA00021	Liner Inserter 24	24	9	1
F16AB-PA00022	Liner Inserter 28	28	10	1
F16AB-PA00469	Liner Inserter 32	32	11	1
F16AB-PA00510	Liner Inserter 36	36	12	1
Total				12

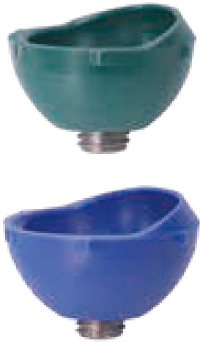

Acetabular Liner Trial Tray (F16AB-PA00575)

REF	Name	Specification	No	Qty
F16AB-PA00576	Lipped Liner Trial 28/36	28/36	1	1
F16AB-PA00577	Lipped Liner Trial 28/38	28/38	2	1
F16AB-PA00578	Lipped Liner Trial 32/40	32/40	3	1
F16AB-PA00579	Lipped Liner Trial 32/42	32/42	4	1
F16AB-PA00580	Lipped Liner Trial 32/44	32/44	5	1
F16AB-PA00581	Lipped Liner Trial 32/46	32/46	6	1
F16AB-PA00582	Lipped Liner Trial 32/48	32/48	7	1
F16AB-PA00583	Lipped Liner Trial 32/50	32/50	8	1
F16AB-PA00584	Lipped Liner Trial 32/52	32/52	9	1
F16AB-PA00585	Lipped Liner Trial 32/54	32/54	10	1
Total				10

Option (※ are Optional tools)

REF	Name	Specification	No	Qty
F16AB-PA00586	Lipped Liner Trial 36/48	36/48	※1	1
F16AB-PA00587	Lipped Liner Trial 36/50	36/50	※2	1
F16AB-PA00588	Lipped Liner Trial 36/52	36/52	※3	1
F16AB-PA00589	Lipped Liner Trial 36/54	36/54	※4	1

Option (※ are Optional tools)

REF	Name	Specification	No	Qty
F16AB-PA00590	Sloped Liner Trial 28/36	28/36	※1	1
F16AB-PA00591	Sloped Liner Trial 28/38	28/38	※2	1
F16AB-PA00592	Sloped Liner Trial 32/40	32/40	※3	1
F16AB-PA00593	Sloped Liner Trial 32/42	32/42	※4	1
F16AB-PA00594	Sloped Liner Trial 36/44	36/44	※5	1
F16AB-PA00595	Sloped Liner Trial 36/46	36/46	※6	1

Bipolar Head

Materials: Stainless Steel+UHMWPE

REF	REF(Pre)	Specification	Inner diameter (mm)	Outer diameter (mm)
J2021-1-3824	F13AB-PA00048	38/24	24	38
J2021-1-4024	F13AB-PA00049	40/24	24	40
J2021-1-4224	F13AB-PA00050	42/24	24	42
J2021-1-4424	F13AB-PA00051	44/24	24	44
J2021-1-4628	F13AB-PA00052	46/28	28	46
J2021-1-4828	F13AB-PA00053	48/28	28	48
J2021-1-5028	F13AB-PA00054	50/28	28	50
J2021-1-5228	F13AB-PA00055	52/28	28	52
J2021-1-5428	F13AB-PA00056	54/28	28	54
J2021-1-4228	F13AB-PA00642	42/28	28	42
J2021-1-4428	F13AB-PA00643	44/28	28	44
J2021-1-5628	F13AB-PA00902	56/28	28	56

Bipolar Trial Tray (F16AB-PA00412)

REF	Name	Specification	No	Qty
F16AB-PA00389	Bipolar Trial 38/24	38/24	1	1
F16AB-PA00390	Bipolar Trial 40/24	40/24	2	1
F16AB-PA00391	Bipolar Trial 42/24	42/24	3	1
F16AB-PA00392	Bipolar Trial 44/24	44/24	4	1
F16AB-PA00393	Bipolar Trial 46/28	46/28	5	1
F16AB-PA00394	Bipolar Trial 48/28	48/28	6	1
F16AB-PA00395	Bipolar Trial 50/28	50/28	7	1
F16AB-PA00396	Bipolar Trial 52/28	52/28	8	1
F16AB-PA00397	Bipolar Trial 54/28	54/28	9	1
F16AB-PA00086	Grip	/	10	1
F16AB-PA00413	Bipolar Instrument Case	/	11	1
Total				11

Option (※ are Optional tools)

REF	Name	Specification	No	Qty
F16AB-PA00546	Bipolar Trial 42/28	42/28	※1	1
F16AB-PA00547	Bipolar Trial 44/28	44/28	※2	1

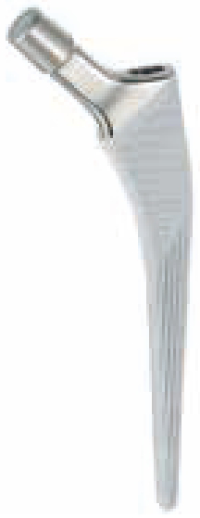

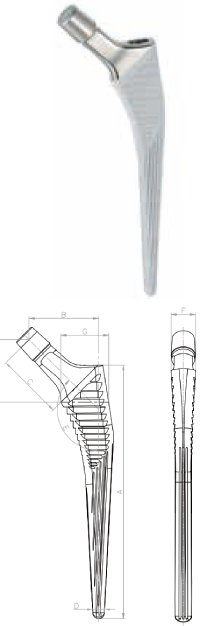

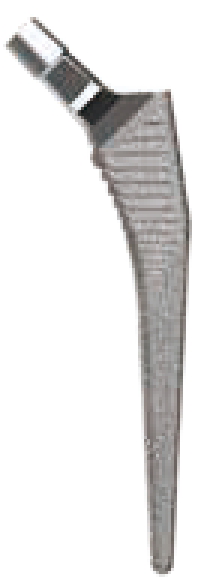

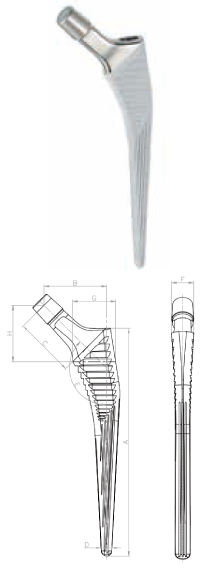

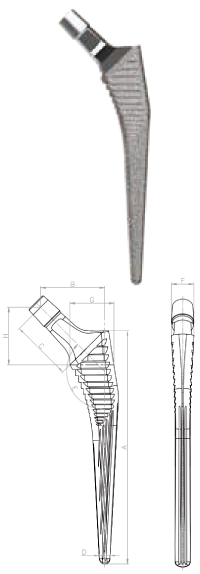

MH NEOS Primary Stem

Materials: Titanium Alloy+Titanium Thickness of Coating: 250μm Neck Angle: 135°

REF	REF(Pre)	Size	Stem length (mm) [A]	Base offset (mm) [B]	Neck length (mm) [C]	Distal Width (mm) [D]	Proximal AP Width (mm) [F]	Proximal ML Width (mm) [G]	Length (mm) [H]
J2043-1-115-0	F13AB-PA00583	0	115	38.0	38.2	5	13.3	24.6	35.8
J2043-1-130-1	F13AB-PA00584	1	130	38.3	38.2	5	13.9	25.7	36.0
J2043-1-140-2	F13AB-PA00585	2	140	39.3	38.2	6	14.1	26.1	35.3
J2043-1-145-3	F13AB-PA00586	3	145	39.8	38.2	7	14.5	27.3	35.8
J2043-1-150-4	F13AB-PA00587	4	150	40.8	38.2	8	15.6	29.2	35.6
J2043-1-155-5	F13AB-PA00588	5	155	41.3	38.2	9	15.7	29.8	35.5
J2043-1-160-6	F13AB-PA00589	6	160	41.8	38.2	10	16.4	31.0	35.7
J2043-1-165-7	F13AB-PA00590	7	165	42.8	38.2	11	17.1	32.2	35.6
J2043-1-170-8	F13AB-PA00648	8	170	43.5	38.2	12	17.8	33.6	36.2
J2043-1-180-9	F13AB-PA00649	9	180	44.5	38.2	13	18.5	35.0	36.2
J2043-1-190-10	F13AB-PA00650	10	190	45.5	38.2	14	19.2	36.7	36.5

MH NEOS Primary Stem

Materials: Titanium Alloy+Titanium Thickness of Coating: 250μm

REF	REF(Pre)	Size	Specification	Stem length (mm)	Distal Width (mm)	Neck Angle
J2063-1-130-1H	F13AB-PA00903	1	5/130/135°-H	130	5	135°
J2063-1-140-2H	F13AB-PA00904	2	6/140/135°-H	140	6	135°
J2063-1-145-3H	F13AB-PA00905	3	7/145/135°-H	145	7	135°
J2063-1-150-4H	F13AB-PA00906	4	8/150/135°-H	150	8	135°
J2063-1-155-5H	F13AB-PA00907	5	9/155/135°-H	155	9	135°
J2063-1-160-6H	F13AB-PA00908	6	10/160/135°-H	160	10	135°
J2063-1-165-7H	F13AB-PA00909	7	11/165/135°-H	165	11	135°
J2063-1-170-8H	F13AB-PA00910	8	12/170/135°-H	170	12	135°
J2063-1-180-9H	F13AB-PA00911	9	13/180/135°-H	180	13	135°
J2063-1-190-10H	F13AB-PA00912	10	14/190/135°-H	190	14	135°

NEOS Primary Stem

Materials: Titanium Alloy+Titanium+HA Thickness of Coating: 250μm+50μm

REF	REF(Pre)	Size	Stem length (mm) [A]	Base offset (mm) [B]	Neck length (mm) [C]	Distal Width (mm) [D]	Neck Angle [E]	Proximal AP Width (mm) [F]	Proximal ML Width (mm) [G]	Length (mm) [H]
J2035-1-115-0	F13AB-PA00200	0	115	38.0	38.2	5	135°	13.3	24.6	35.8
J2035-1-130-1	F13AB-PA00201	1	130	38.3	38.2	5	135°	13.9	25.7	36.0
J2035-1-140-2	F13AB-PA00202	2	140	39.3	38.2	6	135°	14.1	26.1	35.3
J2035-1-145-3	F13AB-PA00203	3	145	39.8	38.2	7	135°	14.5	27.3	35.8
J2035-1-150-4	F13AB-PA00204	4	150	40.8	38.2	8	135°	15.6	29.2	35.6
J2035-1-155-5	F13AB-PA00205	5	155	41.3	38.2	9	135°	15.7	29.8	35.5
J2035-1-160-6	F13AB-PA00206	6	160	41.8	38.2	10	135°	16.4	31.0	35.7
J2035-1-165-7	F13AB-PA00207	7	165	42.8	38.2	11	135°	17.1	32.2	35.6
J2035-1-170-8	F13AB-PA00652	8	170	43.5	38.2	8	135°	17.8	33.6	36.2
J2035-1-180-9	F13AB-PA00653	9	180	44.5	38.2	13	135°	18.5	35.0	36.2
J2035-1-190-10	F13AB-PA00654	10	190	45.5	38.2	14	135°	19.2	36.7	36.5

NEOS Primary Stem

Materials: Titanium Alloy+Titanium+HA Thickness of Coating: 250μm+50μm

REF	REF(Pre)	Size	Specification	Stem length (mm)	Distal Width (mm)	Neck Angle
J2065-1-130-1H	F13AB-PA00913	1	5/130-H	130	5	135°
J2065-1-140-2H	F13AB-PA00914	2	6/140-H	140	6	135°
J2065-1-145-3H	F13AB-PA00915	3	7/145-H	145	7	135°
J2065-1-150-4H	F13AB-PA00916	4	8/150-H	150	8	135°
J2065-1-155-5H	F13AB-PA00917	5	9/155-H	155	9	135°
J2065-1-160-6H	F13AB-PA00918	6	10/160-H	160	10	135°
J2065-1-165-7H	F13AB-PA00919	7	11/165-H	165	11	135°
J2065-1-170-8H	F13AB-PA00920	8	12/170-H	170	12	135°
J2065-1-180-9H	F13AB-PA00921	9	13/180-H	180	13	135°
J2065-1-190-10H	F13AB-PA00922	10	14/190-H	190	14	135°

NEOS Primary Stem

Materials: TC4 Forged Thickness of Coating: Ti 250μm+HA 50μm Neck Angle: 135°

*Note: These products are only available in selected countries. Please consult local sales for details.

TCN	REF	Size	Stem length (mm) [A]	Base offset (mm) [B]	Neck length (mm) [C]	Distal Width (mm) [D]	Proximal AP Width (mm) [F]	Proximal ML Width (mm) [G]	Length (mm) [H]
T-03-2311002-BJ	F13AB-PA00602	0	115	38.0	38.2	5	13.3	24.6	35.8
T-03-2311002-BK	F13AB-PA00603	1	130	38.3	38.2	5	13.9	25.7	36.0
T-03-2311002-BL	F13AB-PA00604	2	140	39.3	38.2	6	14.1	26.1	35.3
T-03-2311002-BM	F13AB-PA00605	3	145	39.8	38.2	7	14.5	27.3	35.8
T-03-2311002-BN	F13AB-PA00606	4	150	40.8	38.2	8	15.6	29.2	35.6
T-03-2311002-BP	F13AB-PA00607	5	155	41.3	38.2	9	15.7	29.8	35.5
T-03-2311002-BR	F13AB-PA00608	6	160	41.8	38.2	10	16.4	31.0	35.7
T-03-2311002-BS	F13AB-PA00609	7	165	42.8	38.2	11	17.1	32.2	35.6

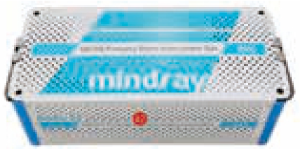

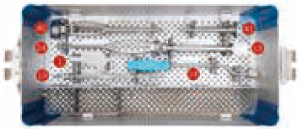

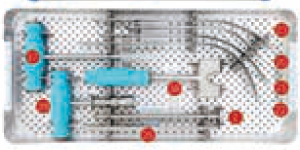

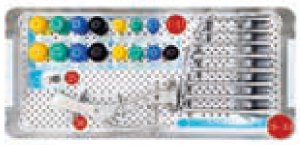

NEOS Primary Stem Instrument Set (F16AB-PA00386)

REF	Name	Specification	No	Qty
F16AB-PA00308	Neos Neck Resection Guide	/	1	1
F16AB-PA00044	Medullary Initiator	/	2	1
F16AB-PA00059	Trial Femoral Head 28S	28S	3	1
F16AB-PA00060	Trial Femoral Head 28M	28M	4	1
F16AB-PA00061	Trial Femoral Head 28L	28L	5	1
F16AB-PA00062	Trial Femoral Head 28XL	28XL	6	1
F16AB-PA00063	Trial Femoral Head 24S	24S	7	1
F16AB-PA00064	Trial Femoral Head 24M	24M	8	1
F16AB-PA00065	Trial Femoral Head 24L	24L	9	1
F16AB-PA00465	Trial Femoral Head 32S	32S	10	1
F16AB-PA00466	Trial Femoral Head 32M	32M	11	1
F16AB-PA00467	Trial Femoral Head 32L	32L	12	1
F16AB-PA00468	Trial Femoral Head 32XL	32XL	13	1
F16AB-PA00498	Trial Femoral Head 36S	36S	14	1
F16AB-PA00499	Trial Femoral Head 36M	36M	15	1
F16AB-PA00500	Trial Femoral Head 36L	36L	16	1
F16AB-PA00501	Trial Femoral Head 36XL	36XL	17	1
F16AB-PA00067	Femoral Head Impactor	/	18	1
F16AB-PA00312	Medullary Reamer Explorer	/	19	1
F16AB-PA00530	Retractor 20	20	20	1
F16AB-PA00531	Retractor 30	30	21	1
F16AB-PA00532	Retractor 40	40	22	1
F16AB-PA00533	Retractor Dovetail	/	23	1
F16AB-PA00134	Neos Stem Inserter Accessory	/	24	1
F16AB-PA00087	Hand File	/	25	1
F16AB-PA00300	Neos Broach 0	0	26	1
F16AB-PA00301	Neos Broach 1	1	27	1
F16AB-PA00302	Neos Broach 2	2	28	1
F16AB-PA00303	Neos Broach 3	3	29	1
F16AB-PA00304	Neos Broach 4	4	30	1
F16AB-PA00305	Neos Broach 5	5	31	1
F16AB-PA00306	Neos Broach 6	6	32	1
F16AB-PA00307	Neos Broach 7	7	33	1
F16AB-PA00309	Bone Compactor	/	34	1
F16AB-PA00311	Neos Trial Neck	/	35	1
F16AB-PA00388	Neos Broach Extractor	/	36	1
F16AB-PA00410	Head Extractor	/	37	1
F16AB-PA00411	Mallet	/	38	1
F16AB-PA00375	T-handle	/	39	1
F16AB-PA00111	Neos Stem Inserter	/	40	1
F16AB-PA00081	Calcar Planer	/	41	1
F16AB-PA00527	Instrument Case	/	42	1
Total				42

Option (※ are Optional tools)

REF	Name	Specification	No	Qty
F16AB-PA00542	Medullary Reamer Φ9.5	Φ9.5	※1	1
F16AB-PA00543	Medullary Reamer Φ10.5	Φ10.5	※2	1
F16AB-PA00596	Neos Broach 8	8	※3	1
F16AB-PA00597	Neos Broach 9	9	※4	1
F16AB-PA00598	Neos Broach 10	10	※5	1

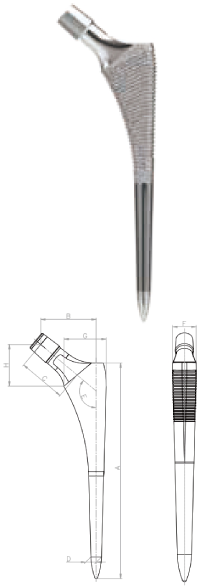

MH Tapered Stem

Materials: Titanium Alloy+Titanium Thickness of Coating: 250μm

REF	REF(Pre)	Size	Stem length (mm) [A]	Base offset (mm) [B]	Neck length (mm) [C]	Distal Width (mm) [D]	Neck Angle [E]	Proximal AP Width (mm) [F]	Proximal ML Width (mm) [G]	Length (mm) [H]
J2044-1-145-2	F13AB-PA00595	1	140	36	31	6	130°	14.2	27.5	27
J2044-1-151-3	F13AB-PA00596	2	145	38	32	7	130°	14.6	29	28
J2044-1-156-4	F13AB-PA00597	3	151	38	32	8	130°	15.6	30.6	29
J2044-1-162-5	F13AB-PA00598	4	156	40	34	9	130°	16.6	31.3	30
J2044-1-167-6	F13AB-PA00599	5	162	40	34	10	130°	17.6	33	31
J2044-1-173-7	F13AB-PA00600	6	167	42	36	11	130°	19.1	33.8	32
J2044-1-140-1	F13AB-PA00594	7	173	42	36	12	130°	20.6	35.7	33

NEOS Primary Stem Instrument Set (F16AB-PA00386) - Part 1

REF	Name	Specification	No	Qty
F16AB-PA00308	Neos Neck Resection Guide	/	1	1
F16AB-PA00044	Medullary Initiator	/	2	1
F16AB-PA00059	Trial Femoral Head 28S	28S	3	1
F16AB-PA00060	Trial Femoral Head 28M	28M	4	1
F16AB-PA00061	Trial Femoral Head 28L	28L	5	1
F16AB-PA00062	Trial Femoral Head 28XL	28XL	6	1
F16AB-PA00063	Trial Femoral Head 24S	24S	7	1
F16AB-PA00064	Trial Femoral Head 24M	24M	8	1
F16AB-PA00065	Trial Femoral Head 24L	24L	9	1
F16AB-PA00465	Trial Femoral Head 32S	32S	10	1
F16AB-PA00466	Trial Femoral Head 32M	32M	11	1
F16AB-PA00467	Trial Femoral Head 32L	32L	12	1
F16AB-PA00468	Trial Femoral Head 32XL	32XL	13	1
F16AB-PA00498	Trial Femoral Head 36S	36S	14	1
F16AB-PA00499	Trial Femoral Head 36M	36M	15	1
F16AB-PA00500	Trial Femoral Head 36L	36L	16	1
F16AB-PA00501	Trial Femoral Head 36XL	36XL	17	1
F16AB-PA00067	Femoral Head Impactor	/	18	1
F16AB-PA00312	Medullary Reamer Explorer	/	19	1
F16AB-PA00530	Retractor 20	20	20	1
F16AB-PA00531	Retractor 30	30	21	1
F16AB-PA00532	Retractor 40	40	22	1
F16AB-PA00533	Retractor Dovetail	/	23	1
F16AB-PA00134	Neos Stem Inserter Accessory	/	24	1

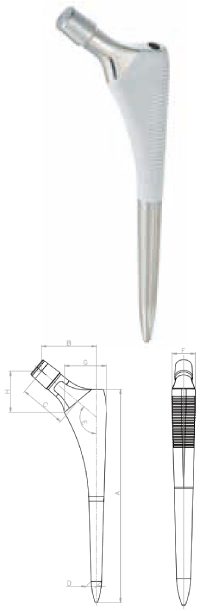

Tapered Stem

Materials: Titanium Alloy+Titanium+HA Thickness of Coating: 250μm+50μm

REF	REF(Pre)	Size	Stem length (mm) [A]	Base offset (mm) [B]	Neck length (mm) [C]	Distal Width (mm) [D]	Neck Angle [E]	Proximal AP Width (mm) [F]	Proximal ML Width (mm) [G]	Length (mm) [H]
J2034-1-140-1	F13AB-PA00091	1	140	36	31	6	130°	14.2	27.5	27
J2034-1-145-2	F13AB-PA00092	2	145	38	32	7	130°	14.6	29	28
J2034-1-151-3	F13AB-PA00093	3	151	38	32	8	130°	15.6	30.6	29
J2034-1-156-4	F13AB-PA00094	4	156	40	34	9	130°	16.6	31.3	30
J2034-1-162-5	F13AB-PA00095	5	162	40	34	10	130°	17.6	33	31
J2034-1-167-6	F13AB-PA00096	6	167	42	36	11	130°	19.1	33.8	32
J2034-1-173-7	F13AB-PA00097	7	173	42	36	12	130°	20.6	35.7	33

Tapered Stem

Materials: TC4 Forged Thickness of Coating: Ti 250μm+HA 50μm Neck Angle: 130°

*Note: These products are only available in selected countries. Please consult local sales for details.

TCN	REF	Size	Stem length (mm) [A]	Base offset (mm) [B]	Neck length (mm) [C]	Distal Width (mm) [D]	Proximal AP Width (mm) [F]	Proximal ML Width (mm) [G]	Length (mm) [H]
T-03-2311002-AM	F13AB-PA00621	1	140	36	31	6	14.2	27.5	27
T-03-2311002-AN	F13AB-PA00622	2	145	38	32	7	14.6	29	28
T-03-2311002-AP	F13AB-PA00623	3	151	38	32	8	15.6	30.6	29
T-03-2311002-AR	F13AB-PA00624	4	156	40	34	9	16.6	31.3	30
T-03-2311002-AS	F13AB-PA00625	5	162	40	34	10	17.6	33	31
T-03-2311002-AT	F13AB-PA00626	6	167	42	36	11	19.1	33.8	32
T-03-2311002-AU	F13AB-PA00627	7	173	42	36	12	20.6	35.7	33

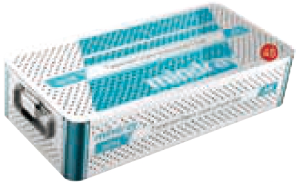

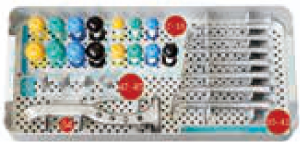

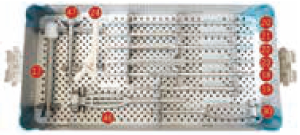

Tapered Stem Instrument Set (F16AB-PA00094) - Part 1

REF	Name	Specification	No	Qty
F16AB-PA00044	Medullary Initiator	/	1	1
F16AB-PA00059	Trial Femoral Head 28S	28S	2	1
F16AB-PA00060	Trial Femoral Head 28M	28M	3	1
F16AB-PA00061	Trial Femoral Head 28L	28L	4	1
F16AB-PA00062	Trial Femoral Head 28XL	28XL	5	1
F16AB-PA00063	Trial Femoral Head 24S	24S	6	1
F16AB-PA00064	Trial Femoral Head 24M	24M	7	1
F16AB-PA00065	Trial Femoral Head 24L	24L	8	1
F16AB-PA00465	Trial Femoral Head 32S	32S	9	1
F16AB-PA00466	Trial Femoral Head 32M	32M	10	1
F16AB-PA00467	Trial Femoral Head 32L	32L	11	1
F16AB-PA00468	Trial Femoral Head 32XL	32XL	12	1
F16AB-PA00498	Trial Femoral Head 36S	36S	13	1
F16AB-PA00499	Trial Femoral Head 36M	36M	14	1
F16AB-PA00500	Trial Femoral Head 36L	36L	15	1
F16AB-PA00501	Trial Femoral Head 36XL	36XL	16	1
F16AB-PA00067	Femoral Head Impactor	/	17	1
F16AB-PA00112	Tapered Medullary Reamer Proximal	/	18	1
F16AB-PA00113	Medullary Reamer Explorer	/	19	1
F16AB-PA00123	Tapered Medullary Reamer 1	1	20	1
F16AB-PA00124	Tapered Medullary Reamer 2&3	2&3	21	1
F16AB-PA00125	Tapered Medullary Reamer 4&5	4&5	22	1
F16AB-PA00126	Tapered Medullary Reamer 6&7	6&7	23	1
F16AB-PA00085	Tapered Neck Resection Guide	/	24	1
F16AB-PA00087	Hand File	/	25	1
F16AB-PA00530	Retractor 20	20	26	1
F16AB-PA00531	Retractor 30	30	27	1
F16AB-PA00532	Retractor 40	40	28	1
F16AB-PA00533	Retractor Dovetail	/	29	1
F16AB-PA00134	Neos Stem Inserter Accessory	/	30	1
F16AB-PA00410	Head Extractor	/	31	1
F16AB-PA00411	Mallet	/	32	1
F16AB-PA00375	T-handle	/	33	1
F16AB-PA00047	Tapered Broach Extractor	/	34	1
F16AB-PA00100	Tapered Broach 1	1	35	1
F16AB-PA00101	Tapered Broach 2	2	36	1
F16AB-PA00102	Tapered Broach 3	3	37	1
F16AB-PA00103	Tapered Broach 4	4	38	1
F16AB-PA00104	Tapered Broach 5	5	39	1
F16AB-PA00105	Tapered Broach 6	6	40	1
F16AB-PA00106	Tapered Broach 7	7	41	1
F16AB-PA00107	Tapered Trial Neck 1	1	42	1

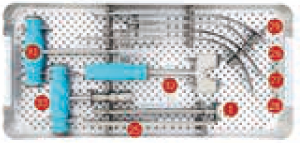

Tapered Stem Instrument Set (F16AB-PA00094) - Part 2

REF	Name	Specification	No	Qty
F16AB-PA00108	Tapered Trial Neck 2&3	2&3	43	1
F16AB-PA00109	Tapered Trial Neck 4&5	4&5	44	1
F16AB-PA00110	Tapered Trial Neck 6&7	6&7	45	1
F16AB-PA00111	Neos Stem Inserter	/	46	1
F16AB-PA00081	Calcar Planer	/	47	1
F16AB-PA00528	Instrument Case	/	48	1
Total				48

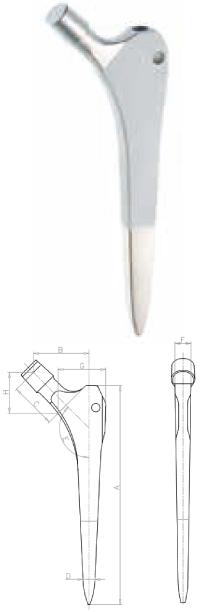

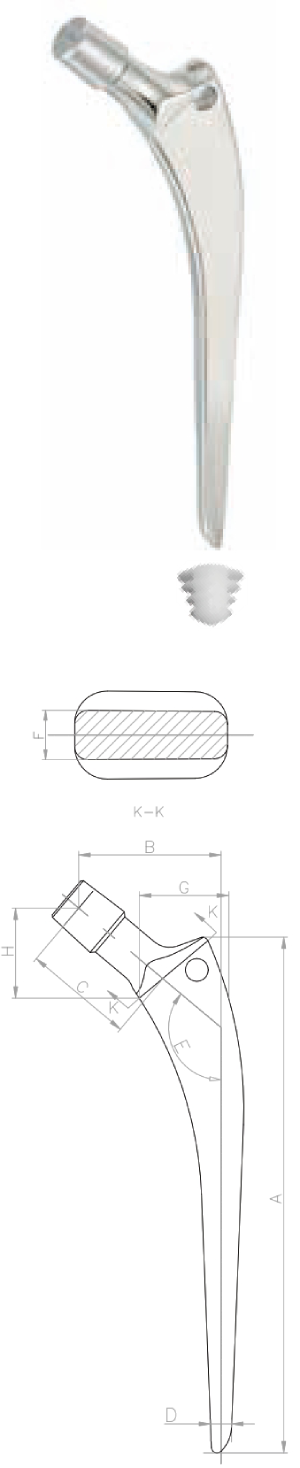

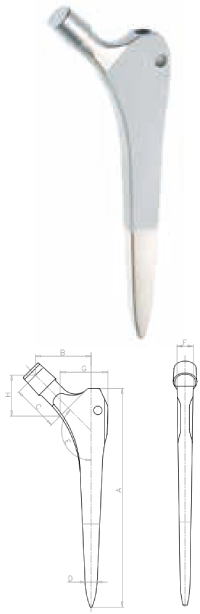

Wedge-shaped Stem

Materials: Titanium Alloy+HA Thickness of Coating: 250μm+50μm

REF	REF(Pre)	Size	Stem length (mm) [A]	Base offset (mm) [B]	Neck length (mm) [C]	Distal Width (mm) [D]	Neck Angle [E]	Proximal AP Width (mm) [F]	Proximal ML Width (mm) [G]	Length (mm) [H]
J2033-1-129-01	F13AB-PA00075	01	129	32.8	27.3	7	135°	10.1	28.1	24.1
J2033-1-133-0	F13AB-PA00076	0	133	33.8	27.3	8	135°	10.6	30	24.2
J2033-1-137-1	F13AB-PA00077	1	137	34.9	29.3	9	135°	11.1	30.5	25.8
J2033-1-141-2	F13AB-PA00078	2	141	36	29.3	10	135°	11.6	32.3	25.8
J2033-1-145-3	F13AB-PA00079	3	145	37	29.3	11	135°	12.1	34.1	25.7
J2033-1-149-4	F13AB-PA00080	4	149	38	31.3	12	135°	12.6	35	27.6
J2033-1-153-5	F13AB-PA00081	5	153	39.1	31.3	13	135°	13.1	36.4	27.5
J2033-1-158-6	F13AB-PA00082	6	158	40.5	31.3	14	135°	13.6	38.8	27.6

Wedge-shaped Stem

Materials: TC4 Forged Thickness of Coating: Ti 250μm+HA 50μm Neck Angle: 135°

*Note: These products are only available in selected countries. Please consult local sales for details.

TCN	REF	Size	Stem length (mm) [A]	Base offset (mm) [B]	Neck length (mm) [C]	Distal Width (mm) [D]	Proximal AP Width (mm) [F]	Proximal ML Width (mm) [G]	Length (mm) [H]
T-03-2311002-BA	F13AB-PA00634	01	129	32.8	27.3	7	10.1	28.1	24.1
T-03-2311002-BB	F13AB-PA00635	0	133	33.8	27.3	8	10.6	30	24.2
T-03-2311002-BC	F13AB-PA00636	1	137	34.9	29.3	9	11.1	30.5	25.8
T-03-2311002-BD	F13AB-PA00637	2	141	36	29.3	10	11.6	32.3	25.8
T-03-2311002-BE	F13AB-PA00638	3	145	37	29.3	11	12.1	34.1	25.7
T-03-2311002-BF	F13AB-PA00639	4	149	38	31.3	12	12.6	35	27.6
T-03-2311002-BG	F13AB-PA00640	5	153	39.1	31.3	13	13.1	36.4	27.5
T-03-2311002-BH	F13AB-PA00641	6	158	40.5	31.3	14	13.6	38.8	27.6

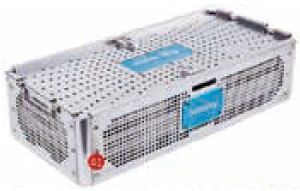

Wedge-shaped Stem Instrument Set (F16AB-PA00042)

REF	Name	Specification	No	Qty
F16AB-PA00410	Head Extractor	/	1	1
F16AB-PA00044	Medullary Initiator	/	2	1
F16AB-PA00411	Mallet	/	3	1
F16AB-PA00046	Floating Ruler	/	4	1
F16AB-PA00047	Tapered Broach Extractor	/	5	1
F16AB-PA00048	Broach 01	01	6	1
F16AB-PA00049	Broach 0	0	7	1
F16AB-PA00050	Broach 1	1	8	1
F16AB-PA00051	Broach 2	2	9	1
F16AB-PA00052	Broach 3	3	10	1
F16AB-PA00053	Broach 4	4	11	1
F16AB-PA00054	Broach 5	5	12	1
F16AB-PA00055	Broach 6	6	13	1
F16AB-PA00056	Trial Neck 01&0	01&0	14	1
F16AB-PA00057	Trial Neck 123	123	15	1
F16AB-PA00058	Trial Neck 456	456	16	1

Wedge-shaped Stem Instrument Set (F16AB-PA00042) - Part 2

REF	Name	Specification	No	Qty
F16AB-PA00059	Trial Femoral Head 28S	28S	17	1
F16AB-PA00060	Trial Femoral Head 28M	28M	18	1
F16AB-PA00061	Trial Femoral Head 28L	28L	19	1
F16AB-PA00062	Trial Femoral Head 28XL	28XL	20	1
F16AB-PA00063	Trial Femoral Head 24S	24S	21	1
F16AB-PA00064	Trial Femoral Head 24M	24M	22	1
F16AB-PA00065	Trial Femoral Head 24L	24L	23	1
F16AB-PA00066	Stem Inserter	/	24	1
F16AB-PA00067	Femoral Head Impactor	/	25	1
F16AB-PA00375	T-handle	/	26	1
F16AB-PA00069	Medullary Reamer Φ7	Φ7	27	1
F16AB-PA00070	Medullary Reamer Φ8	Φ8	28	1
F16AB-PA00071	Medullary Reamer Φ9	Φ9	29	1
F16AB-PA00072	Medullary Reamer Φ10	Φ10	30	1
F16AB-PA00073	Medullary Reamer Φ11	Φ11	31	1
F16AB-PA00074	Medullary Reamer Φ12	Φ12	32	1
F16AB-PA00081	Calcar Planer	/	33	1
F16AB-PA00085	Tapered Neck Resection Guide	/	34	1
F16AB-PA00086	Grip	/	35	1
F16AB-PA00087	Hand File	/	36	1
F16AB-PA00088	Retractor 20	20	37	1
F16AB-PA00089	Retractor 30	30	38	1
F16AB-PA00090	Retractor 40	40	39	1
F16AB-PA00015	Trial Cup Connector	/	40	1
F16AB-PA00091	Instrument Case	/	41	1
Total				41

Cemented Stem-Wedge Shaped

Materials: CoCrMo

REF	REF(Pre)	Size	Stem length (mm) [A]	Base offset (mm) [B]	Neck length (mm) [C]	Distal Width (mm) [D]	Neck Angle [E]	Proximal AP Width (mm) [F]	Proximal ML Width (mm) [G]	Length (mm) [H]
J2016-1-136-0	F13AB-PA00111	0	136	37.5	28	5.5	130°	7.6	23.5	23.7
J2016-1-136-1	F13AB-PA00113	1	136.5	38.5	30.3	6.5	130°	8.7	24.5	25
J2016-1-137-2	F13AB-PA00115	2	137	39.7	31.8	7.5	130°	9.7	25.4	26.3
J2016-1-138-3	F13AB-PA00117	3	138	40.9	33.3	8.5	130°	10.7	26.4	27.5
J2016-1-139-4	F13AB-PA00119	4	139	42	34.8	9	130°	11.7	27.3	28.9
J2016-1-175-1	F13AB-PA00644	X1	175	38.6	30.3	6.5	130°	8.6	24.5	25
J2016-1-180-2	F13AB-PA00645	X2	180	39.7	31.8	7.5	130°	9.6	25.4	26.3
J2016-1-185-3	F13AB-PA00646	X3	185	40.9	33.3	8.5	130°	10.6	26.4	27.5
J2016-1-200-4	F13AB-PA00647	X4	200	42	34.8	9	130°	11.6	27.3	28.9

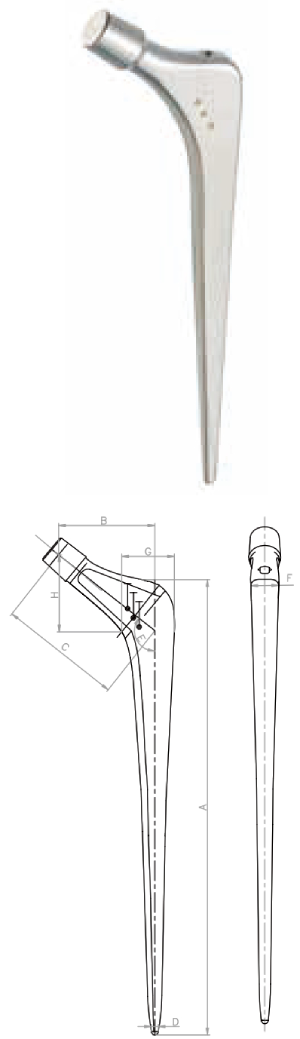

MH Cemented Stem-Settlement

Materials: CoCrMo

REF	REF(Pre)	Stem length (mm) [A]	Base offset (mm) [B]	Neck length (mm) [C]	Distal Width (mm) [D]	Neck Angle [E]	Proximal AP Width (mm) [F]	Proximal ML Width (mm) [G]	Length (mm) [H]
J2014-1-95-30	J2014-1-95-30	95	30	40.8	5.0	130°	8.5	18.0	19.0
J2014-1-115-33	J2014-1-115-33	115	33	43.1	5.1	130°	8.7	18.5	25.1
J2014-1-125-35	J2014-1-125-35	125	35.5	46.3	5.1	130°	8.8	18.7	27.5
J2014-1-125-42	J2014-1-125-42	125	42	53.5	5.2	130°	9.0	18.8	30.0
J2014-1-136-33	J2014-1-136-33	136	33	43.1	5.1	130°	9.3	19.0	25.1
J2014-1-139-35	J2014-1-139-35	139	35.5	46.3	5.1	130°	9.9	19.5	27.5
J2014-1-150-A37	J2014-1-150-A37	150	37.5	49.0	5.22	130°	10.2	18.5	34.0
J2014-1-150-B37	J2014-1-150-B37	150	37.5	49.0	5.23	130°	12.3	18.6	34.0
J2014-1-150-C37	J2014-1-150-C37	150	37.5	49.0	5.24	130°	12.3	22.9	34.0
J2014-1-150-D37	J2014-1-150-D37	150	37.5	49.0	5.25	130°	12.2	25.2	34.0
J2014-1-150-E37	J2014-1-150-E37	150	37.5	49.0	5.26	130°	12.3	27.0	34.0
J2014-1-150-A42	J2014-1-150-A42	150	42	53.5	5.32	130°	10.2	18.8	34.0
J2014-1-150-B42	J2014-1-150-B42	150	42	53.5	5.33	130°	12.3	18.7	34.0
J2014-1-150-C42	J2014-1-150-C42	150	42	53.5	5.34	130°	12.3	23.0	34.0
J2014-1-150-D42	J2014-1-150-D42	150	42	53.5	5.35	130°	12.2	25.2	34.0
J2014-1-150-E42	J2014-1-150-E42	150	42	53.5	5.36	130°	12.3	27.0	34.0
J2014-1-180-B37	J2014-1-180-B37	180	37.5	49.0	5.2	130°	12.3	18.6	34.0
J2014-1-200-C42	J2014-1-200-C42	200	42	53.5	5.3	130°	12.3	22.9	34.0
J2014-1-200-D42	J2014-1-200-D42	200	42	54.8	5.33	130°	12.2	25.2	34.0
J2014-1-220-D44	J2014-1-220-D44	220	44	56.8	5.3	130°	12.3	25.2	34.0
J2014-1-240-D44	J2014-1-240-D44	240	44	56.8	5.3	130°	13.3	25.3	34.0
J2014-1-260-D44	J2014-1-260-D44	260	44	56.8	5.3	130°	13.3	25.4	34.0

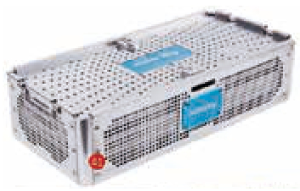

Cemented Stem Instrument Set (F16AB-PA00405)

REF	Name	Specification	No	Qty
F16AB-PA00410	Head Extractor	/	1	1
F16AB-PA00044	Medullary Initiator	/	2	1
F16AB-PA00411	Mallet	/	3	1
F16AB-PA00046	Floating Ruler	/	4	1
F16AB-PA00047	Tapered Broach Extractor	/	5	1
F16AB-PA00059	Trial Femoral Head 28S	28S	6	1
F16AB-PA00060	Trial Femoral Head 28M	28M	7	1
F16AB-PA00061	Trial Femoral Head 28L	28L	8	1
F16AB-PA00062	Trial Femoral Head 28XL	28XL	9	1
F16AB-PA00063	Trial Femoral Head 24S	24S	10	1
F16AB-PA00064	Trial Femoral Head 24M	24M	11	1
F16AB-PA00065	Trial Femoral Head 24L	24L	12	1
F16AB-PA00066	Stem Inserter	/	13	1
F16AB-PA00067	Femoral Head Impactor	/	14	1
F16AB-PA00375	T-handle	/	15	1
F16AB-PA00069	Medullary Reamer Φ7	Φ7	16	1
F16AB-PA00070	Medullary Reamer Φ8	Φ8	17	1
F16AB-PA00071	Medullary Reamer Φ9	Φ9	18	1
F16AB-PA00072	Medullary Reamer Φ10	Φ10	19	1
F16AB-PA00073	Medullary Reamer Φ11	Φ11	20	1
F16AB-PA00074	Medullary Reamer Φ12	Φ12	21	1
F16AB-PA00075	Broach A 01	01	22	1
F16AB-PA00076	Broach A 0	0	23	1
F16AB-PA00077	Broach A 1	1	24	1
F16AB-PA00078	Broach A 2	2	25	1
F16AB-PA00079	Broach A 3	3	26	1
F16AB-PA00080	Broach A 4	4	27	1
F16AB-PA00081	Calcar Planer	/	28	1
F16AB-PA00398	Neck A 01,0,1	01,0,1	29	1
F16AB-PA00399	Neck A 2	2	30	1
F16AB-PA00400	Neck A 3,4	3,4	31	1
F16AB-PA00085	Tapered Neck Resection Guide	/	32	1
F16AB-PA00086	Grip	/	33	1
F16AB-PA00087	Hand File	/	34	1
F16AB-PA00088	Retractor 20	20	35	1
F16AB-PA00089	Retractor 30	30	36	1
F16AB-PA00090	Retractor 40	40	37	1
F16AB-PA00015	Trial Cup Connector	/	38	1
F16AB-PA00296	Inserter	/	39	1
F16AB-PA00409	Instrument Case	/	40	1
Total				40

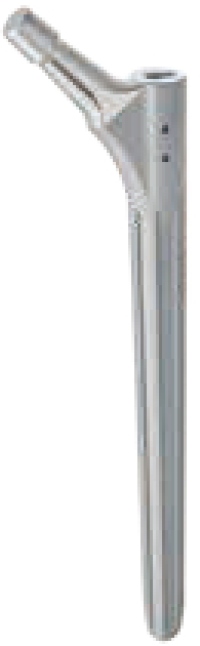

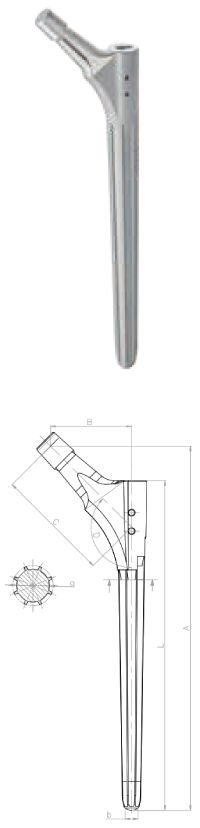

NEOS Revision Stem

Materials: Titanium Alloy

REF	Size	Stem length (mm) [A]	Base offset (mm) [B]	Neck length (mm) [C]	Neck-Shaft Angle [D]	Stem Length [L]	Proximal AP Width (mm) [a]	Proximal ML Width (mm) [b]
F13AB-PA00208	14	190	41.8	59.2	135°	170	14	8
F13AB-PA00209	15	190	41.8	59.2	135°	170	15	8.5
F13AB-PA00210	16	190	41.8	59.2	135°	170	16	9.5
F13AB-PA00211	17	190	41.8	59.2	135°	170	17	10.5
F13AB-PA00212	18	190	44.8	63.4	135°	170	18	11
F13AB-PA00213	19	190	44.8	63.4	135°	170	19	11.5
F13AB-PA00214	20	190	44.8	63.4	135°	170	20	12.5
F13AB-PA00215	14	225	41.8	59.2	135°	200	14	8
F13AB-PA00216	15	225	41.8	59.2	135°	200	15	8.5
F13AB-PA00217	16	225	41.8	59.2	135°	200	16	9.5
F13AB-PA00218	17	225	41.8	59.2	135°	200	17	10.5
F13AB-PA00219	18	225	44.8	63.4	135°	200	18	11
F13AB-PA00220	19	225	44.8	63.4	135°	200	19	11.5
F13AB-PA00221	20	225	44.8	63.4	135°	200	20	12.5
F13AB-PA00222	21	225	44.8	63.4	135°	200	21	13
F13AB-PA00223	22	225	46.8	66.2	135°	200	22	14

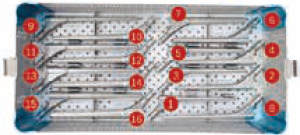

NEOS Revision Stem Instrument Set (F16AB-PA00384) - Part 1

REF	Name	Specification	No	Qty
F16AB-PA00348	Neos R Trail Stem 14/170	14/170	1	1
F16AB-PA00349	Neos R Trail Stem 15/170	15/170	2	1
F16AB-PA00350	Neos R Trail Stem 16/170	16/170	3	1
F16AB-PA00351	Neos R Trail Stem 17/170	17/170	4	1
F16AB-PA00352	Neos R Trail Stem 18/170	18/170	5	1
F16AB-PA00353	Neos R Trail Stem 19/170	19/170	6	1
F16AB-PA00354	Neos R Trail Stem 20/170	20/170	7	1
F16AB-PA00355	Neos R Trail Stem 14/205	14/205	8	1
F16AB-PA00356	Neos R Trail Stem 15/205	15/205	9	1
F16AB-PA00357	Neos R Trail Stem 16/205	16/205	10	1
F16AB-PA00358	Neos R Trail Stem 17/205	17/205	11	1
F16AB-PA00359	Neos R Trail Stem 18/205	18/205	12	1
F16AB-PA00360	Neos R Trail Stem 19/205	19/205	13	1
F16AB-PA00361	Neos R Trail Stem 20/205	20/205	14	1
F16AB-PA00362	Neos R Trail Stem 21/205	21/205	15	1
F16AB-PA00363	Neos R Trail Stem 22/205	22/205	16	1
F16AB-PA00375	T-handle	/	17	1
F16AB-PA00376	Neos R Stem Inserter	/	18	1
F16AB-PA00377	Neos R Extractor	/	19	1
F16AB-PA00379	Osteotome 1	1	20	1
F16AB-PA00380	Osteotome 2	2	21	1
F16AB-PA00381	Osteotome 3	3	22	1
F16AB-PA00382	Neos R Stem Extractor Connector	/	23	1
F16AB-PA00383	Neos R Stem Insert Handle	/	24	1
F16AB-PA00364	Neos R Reamer Φ12	Φ12	25	1
F16AB-PA00365	Neos R Reamer Φ13	Φ13	26	1
F16AB-PA00366	Neos R Reamer Φ14	Φ14	27	1
F16AB-PA00367	Neos R Reamer Φ15	Φ15	28	1
F16AB-PA00368	Neos R Reamer Φ16	Φ16	29	1
F16AB-PA00369	Neos R Reamer Φ17	Φ17	30	1
F16AB-PA00370	Neos R Reamer Φ18	Φ18	31	1
F16AB-PA00371	Neos R Reamer Φ19	Φ19	32	1
F16AB-PA00372	Neos R Reamer Φ20	Φ20	33	1
F16AB-PA00373	Neos R Reamer Φ21	Φ21	34	1
F16AB-PA00374	Neos R Reamer Φ22	Φ22	35	1
F16AB-PA00059	Trial Femoral Head 28S	28S	36	1
F16AB-PA00060	Trial Femoral Head 28M	28M	37	1
F16AB-PA00061	Trial Femoral Head 28L	28L	38	1
F16AB-PA00062	Trial Femoral Head 28XL	28XL	39	1
F16AB-PA00063	Trial Femoral Head 24S	24S	40	1
F16AB-PA00064	Trial Femoral Head 24M	24M	41	1
F16AB-PA00065	Trial Femoral Head 24L	24L	42	1

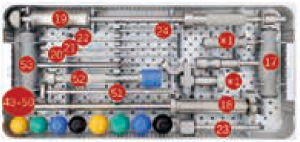

NEOS Revision Stem Instrument Set (F16AB-PA00384) - Part 2

REF	Name	Specification	No	Qty
F16AB-PA00465	Trial Femoral Head 32S	32S	43	1
F16AB-PA00466	Trial Femoral Head 32M	32M	44	1
F16AB-PA00467	Trial Femoral Head 32L	32L	45	1
F16AB-PA00468	Trial Femoral Head 32XL	32XL	46	1
F16AB-PA00498	Trial Femoral Head 36S	36S	47	1
F16AB-PA00499	Trial Femoral Head 36M	36M	48	1
F16AB-PA00500	Trial Femoral Head 36L	36L	49	1
F16AB-PA00501	Trial Femoral Head 36XL	36XL	50	1
F16AB-PA00044	Medullary Initiator	/	51	1
F16AB-PA00067	Femoral Head Impactor	/	52	1
F16AB-PA00410	Head Extractor	/	53	1
F16AB-PA00385	NEOS Revision Stem Instrument Case	/	54	1
Total				54

Option (※ are Optional tools)

REF	Name	Specification	No	Qty
F16AB-PA00378	Neos R Extractor Connector	/	※1	1

NEOS Revision Stem

Materials: Titanium Alloy

REF	REF(Pre)	Size	Specification	Stem length (mm)	Distal Width (mm)	Neck Angle
J2060-1-170-14	J2060-1-170-14	14/170	14/170	170	14	135°
J2060-1-205-14	J2060-1-205-14	14/205	14/205	205	14	135°
J2060-1-245-14	J2060-1-245-14	14/245	14/245	245	14	135°
J2060-1-285-14	J2060-1-285-14	14/285	14/285	285	14	135°
J2060-1-170-15	J2060-1-170-15	15/170	15/170	170	15	135°
J2060-1-205-15	J2060-1-205-15	15/205	15/205	205	15	135°
J2060-1-245-15	J2060-1-245-15	15/245	15/245	245	15	135°
J2060-1-285-15	J2060-1-285-15	15/285	15/285	285	15	135°
J2060-1-170-16	J2060-1-170-16	16/170	16/170	170	16	135°
J2060-1-205-16	J2060-1-205-16	16/205	16/205	205	16	135°
J2060-1-245-16	J2060-1-245-16	16/245	16/245	245	16	135°
J2060-1-285-16	J2060-1-285-16	16/285	16/285	285	16	135°
J2060-1-170-17	J2080-1-170-17	17/170	17/170	170	17	135°

NEOS Revision Stem

Materials: Titanium Alloy

REF	REF(Pre)	Size	Specification	Stem length (mm)	Distal Width (mm)	Neck Angle
J2060-1-205-17	J2060-1-205-17	17/205	17/205	205	17	135°
J2060-1-245-17	J2060-1-245-17	17/245	17/245	245	17	135°
J2060-1-285-17	J2060-1-285-17	17/285	17/285	285	17	135°
J2060-1-170-18	J2060-1-170-18	18/170	18/170	170	18	135°
J2060-1-205-18	J2060-1-205-18	18/205	18/205	205	18	135°
J2060-1-245-18	J2060-1-245-18	18/245	18/245	245	18	135°
J2060-1-285-18	J2060-1-285-18	18/285	18/285	285	18	135°
J2060-1-170-19	J2060-1-170-19	19/170	19/170	170	19	135°
J2060-1-205-19	J2060-1-205-19	19/205	19/205	205	19	135°
J2060-1-245-19	J2060-1-245-19	19/245	19/245	245	19	135°
J2060-1-285-19	J2060-1-285-19	19/285	19/285	285	19	135°
J2060-1-170-20	J2060-1-170-20	20/170	20/170	170	20	135°
J2060-1-205-20	J2060-1-205-20	20/205	20/205	205	20	135°
J2060-1-245-20	J2060-1-245-20	20/245	20/245	245	20	135°
J2060-1-285-20	J2060-1-285-20	20/285	20/285	285	20	135°
J2060-1-205-21	J2060-1-205-21	21/205	21/205	205	21	135°
J2060-1-245-21	J2060-1-245-21	21/245	21/245	245	21	135°
J2060-1-285-21	J2060-1-285-21	21/285	21/285	285	21	135°
J2060-1-205-22	J2060-1-205-22	22/205	22/205	205	22	135°
J2060-1-245-22	J2060-1-245-22	22/245	22/245	245	22	135°
J2060-1-285-22	J2060-1-285-22	22/285	22/285	285	22	135°
J2065-1-245-23	J2065-1-245-23	23/245	23/245	245	23	135°
J2065-1-285-23	J2065-1-285-23	23/285	23/285	285	23	135°
J2060-1-245-24	J2060-1-245-24	24/245	24/245	245	24	135°
J2065-1-285-24	J2065-1-285-24	24/285	24/285	285	24	135°
J2060-1-245-25	J2060-1-245-25	25/245	25/245	245	25	135°
J2060-1-285-25	J2060-1-285-25	25/285	25/285	285	25	135°

Femoral Component

Materials: CoCrMo

REF	Specification	L/R	AP (mm)	ML (mm)
F13BB-PA00004	F1	L	53	57
F13BB-PA00005	F1	R	53	57
F13BB-PA00006	F2	L	56	60
F13BB-PA00007	F2	R	56	60
F13BB-PA00008	F3	L	59	63
F13BB-PA00009	F3	R	59	63
F13BB-PA00010	F4	L	61	66
F13BB-PA00011	F4	R	61	66
F13BB-PA00012	F5	L	65	71
F13BB-PA00013	F5	R	65	71

Femoral Instrument Set (F16AB-PA00168) - Part 1

REF	Name	Specification	No	Qty
F16AB-PA00169	Bone File	/	1	1
F16AB-PA00170	IM Drill	/	2	1
F16AB-PA00171	Alignment Rod	/	3	1
F16AB-PA00172	Femoral Alignment Tower	/	4	1
F16AB-PA00173	IM Rod 400mm	/	5	1
F16AB-PA00174	IM Rod Handle	/	6	1
F16AB-PA00176	Anterior Reference Guide	/	7	1
F16AB-PA00177	Distal Femoral Cutting Block	/	8	1
F16AB-PA00178	Distal Femoral Locating Device Outrigger	/	9	1
F16AB-PA00179	Distal Femoral Locating Device	/	10	1
F16AB-PA00170	Steinmann Pin	/	11	8
F16AB-PA00181	4 in 1 Cutting Guide F1	F1	12	1
F16AB-PA00182	4 in 1 Cutting Guide F2	F2	13	1
F16AB-PA00183	4 in 1 Cutting Guide F3	F3	14	1
F16AB-PA00184	4 in 1 Cutting Guide F4	F4	15	1
F16AB-PA00185	4 in 1 Cutting Guide F5	F5	16	1
F16AB-PA00186	Removable Handle	/	17	2
F16AB-PA00187	Tibial Retractor	/	18	1
F16AB-PA00188	Pin Puller	/	19	1
F16AB-PA00189	Femoral Impactor	/	20	1

Femoral Instrument Set (F16AB-PA00168) - Part 2

REF	Name	Specification	No	Qty
F16AB-PA00190	Femoral Insert/Extract	/	21	1
F16AB-PA00191	Femoral Notch Guide F1	F1	22	1
F16AB-PA00192	Femoral Notch Guide F2	F2	23	1
F16AB-PA00193	Femoral Notch Guide F3	F3	24	1
F16AB-PA00194	Femoral Notch Guide F4	F4	25	1
F16AB-PA00195	Femoral Notch Guide F5	F5	26	1
F16AB-PA00196	Femoral osteotome	/	27	1
F16AB-PA00197	Femoral Box Trial F1	F1	28	1
F16AB-PA00198	Femoral Box Trial F2	F2	29	1
F16AB-PA00199	Femoral Box Trial F3	F3	30	1
F16AB-PA00200	Femoral Box Trial F4	F4	31	1
F16AB-PA00201	Femoral Box Trial F5	F5	32	1
F16AB-PA00202	Femur Trial F1 Left	F1 L	33	1
F16AB-PA00203	Femur Trial F1 Right	F1 R	34	1
F16AB-PA00204	Femur Trial F2 Left	F2 L	35	1
F16AB-PA00205	Femur Trial F2 Right	F2 R	36	1
F16AB-PA00206	Femur Trial F3 Left	F3 L	37	1

Femoral Instrument Set (F16AB-PA00168) - Part 3

REF	Name	Specification	No	Qty
F16AB-PA00207	Femur Trial F3 Right	F3 R	38	1
F16AB-PA00208	Femur Trial F4 Left	F4 L	39	1
F16AB-PA00209	Femur Trial F4 Right	F4 R	40	1
F16AB-PA00210	Femur Trial F5 Left	F5 L	41	1
F16AB-PA00211	Femur Trial F5 Right	F5 R	42	1
F16AB-PA00212	Femoral Box Trial Screw Driver	/	43	1
F16AB-PA00213	Pin Inserter	/	44	1
F16AB-PA00214	Universal Handle	/	45	1
F16AB-PA00215	Femoral Retractor	/	46	1
F16AB-PA00316	Femoral Instrument Case	/	47	1
Total				55

Option (※ are Optional tools)

REF	Name	Specification	No	Qty
F16AB-PA00175	Posterior Reference Guide	/	※1	1

Tibial Tray

Materials: Titanium Alloy

REF	Specification	L/R	AP(mm)	ML(mm)
F13BB-PA00034	T0	-	41	61
F13BB-PA00035	T1	-	43	64
F13BB-PA00036	T1+	-	45	67
F13BB-PA00037	T2+	-	47	71
F13BB-PA00038	T3+	-	51	76

Tibial Insert

Materials: UHMWPE

REF	Specification	Thickness (mm)	AP (mm)	ML (mm)
F13BB-PA00014	T0	8	41	61
F13BB-PA00015	T0	10	41	61
F13BB-PA00016	T0	12.5	41	61
F13BB-PA00017	T0	15	41	61
F13BB-PA00018	T1	8	43	64
F13BB-PA00019	T1	10	43	64
F13BB-PA00020	T1	12.5	43	64
F13BB-PA00021	T1	15	43	64
F13BB-PA00022	T1+	8	45	66
F13BB-PA00023	T1+	10	45	66
F13BB-PA00024	T1+	12.5	45	66
F13BB-PA00025	T1+	15	45	66
F13BB-PA00026	T2+	8	47	71
F13BB-PA00027	T2+	10	47	71
F13BB-PA00028	T2+	12.5	47	71
F13BB-PA00029	T2+	15	47	71
F13BB-PA00030	T3+	8	51	76
F13BB-PA00031	T3+	10	51	76
F13BB-PA00032	T3+	12.5	51	76
F13BB-PA00033	T3+	15	51	76

Tibial Instrument Set (F16AB-PA00217) - Part 1

REF	Name	Specification	No	Qty
F16AB-PA00218	Tibial Insert Extractor	/	1	1
F16AB-PA00219	Tibial Retractor	/	2	1
F16AB-PA00220	Tibial Tray Inserter	/	3	1
F16AB-PA00221	Polyethylene Component Impactor	/	4	1
F16AB-PA00222	Universal Tibial Tray Impactor	/	5	1
F16AB-PA00223	Slap Hammer Attachment	/	6	1
F16AB-PA00224	Spacer Block 8mm	8mm	7	1
F16AB-PA00225	Spacer Block 10mm	10mm	8	1
F16AB-PA00226	Spacer Block 12.5mm	12.5mm	9	1
F16AB-PA00227	Spacer Block 15mm	15mm	10	1
F16AB-PA00228	Extension Shim 1mm	1mm	11	1
F16AB-PA00229	Tibial Drill Bush 0-2	0-2	12	1
F16AB-PA00230	Tibial Drill Bush 3	3	13	1
F16AB-PA00231	Tibial Keel Bush 0-2	0-2	14	1
F16AB-PA00232	Tibial Keel Bush 3	3	15	1
F16AB-PA00233	Tibial Keel Punch Guide 0-2	0-2	16	1

Tibial Instrument Set (F16AB-PA00217) - Part 2

REF	Name	Specification	No	Qty
F16AB-PA00234	Tibial Keel Punch Guide 3	3	17	1
F16AB-PA00235	Tibial Drill 15mm 0-2	0-2	18	1
F16AB-PA00236	Tibial Drill 17mm 3	3	19	1
F16AB-PA00237	Tibial Alignment Rod	/	20	1
F16AB-PA00238	Tibial Alignment Ankle Clamp	/	21	1
F16AB-PA00239	Tibial Alignment Proximal Device	/	22	1
F16AB-PA00240	Tibial Alignment Proximal Device with Spike	/	23	1
F16AB-PA00241	Slotted Tibial Cutting Block 0°	0°	24	1
F16AB-PA00242	Slotted Tibial Cutting Block 3°	3°	25	1
F16AB-PA00243	Slotted Tibial Cutting Block 5°	5°	26	1
F16AB-PA00244	Stylus	/	27	1
F16AB-PA00245	Tibial Tray Trial T0	T0	28	1
F16AB-PA00246	Tibial Tray Trial T1	T1	29	1
F16AB-PA00247	Tibial Tray Trial T1+	T1+	30	1
F16AB-PA00248	Tibial Tray Trial T2+	T2+	31	1
F16AB-PA00249	Tibial Tray Trial T3+	T3+	32	1
F16AB-PA00250	Tibial Trial Alignment Handle	/	33	1
F16AB-PA00251	Tibial Trial Insert Remove Tool	/	34	1
F16AB-PA00252	Endless Steinmann Pin	/	35	4
F16AB-PA00253	Tibial Insert Trial T0-8	T0-8	36	1
F16AB-PA00254	Tibial Insert Trial T0-10	T0-10	37	1
F16AB-PA00255	Tibial Insert Trial T0-12.5	T0-12.5	38	1
F16AB-PA00256	Tibial Insert Trial T0-15	T0-15	39	1
F16AB-PA00257	Tibial Insert Trial T1-8	T1-8	40	1
F16AB-PA00258	Tibial Insert Trial T1-10	T1-10	41	1
F16AB-PA00259	Tibial Insert Trial T1-12.5	T1-12.5	42	1
F16AB-PA00260	Tibial Insert Trial T1-15	T1-15	43	1
F16AB-PA00261	Tibial Insert Trial T1+-8	T1+-8	44	1
F16AB-PA00262	Tibial Insert Trial T1+-10	T1+-10	45	1
F16AB-PA00263	Tibial Insert Trial T1+-12.5	T1+-12.5	46	1
F16AB-PA00264	Tibial Insert Trial T1+-15	T1+-15	47	1
F16AB-PA00265	Tibial Insert Trial T2+-8	T2+-8	48	1
F16AB-PA00266	Tibial Insert Trial T2+-10	T2+-10	49	1
F16AB-PA00267	Tibial Insert Trial T2+-12.5	T2+-12.5	50	1
F16AB-PA00268	Tibial Insert Trial T2+-15	T2+-15	51	1
F16AB-PA00269	Tibial Insert Trial T3+-8	T3+-8	52	1
F16AB-PA00270	Tibial Insert Trial T3+-10	T3+-10	53	1
F16AB-PA00271	Tibial Insert Trial T3+-12.5	T3+-12.5	54	1
F16AB-PA00272	Tibial Insert Trial T3+-15	T3+-15	55	1
F16AB-PA00315	Tibial Instrument Case	/	56	1
Total				59

Patellar Component

Materials: UHMWPE

P/N	Specification	L/R	D (mm)	H (mm)
F13BB-PA00001	-	-	32	8
F13BB-PA00002	-	-	35	8.5
F13BB-PA00003	-	-	38	9

Patella Instrument Set (F16AB-PA00274)

REF	Name	Specification	No	Qty
F16AB-PA00275	Calibrated Patellar Cutting Guide	/	1	1
F16AB-PA00276	The Patellar Drilling Guide 32&35	/	2	1
F16AB-PA00277	The Patellar Drilling Guide 38	/	3	1
F16AB-PA00278	Patella Trial 32	/	4	1
F16AB-PA00279	Patella Trial 35	/	5	1
F16AB-PA00280	Patella Trial 38	/	6	1
F16AB-PA00281	Patella Caliper	/	7	1
F16AB-PA00282	Patella Drill	/	8	1
F16AB-PA00283	Patella Clamp	/	9	1
F16AB-PA00464	Patellar Instrument Box	/	10	1
Total				10

Size Table (Compatibility Matrix)

Tibial Tray	Tibial Insert	Femoral Component
Tibial Tray	Tibial Insert	F1	F2	F3	F4	F5
T0	T0	Compatible			-
T1	T1	Compatible				-
T1+	T1+	Compatible
T2	T2	-	Compatible
T3	T3	-		Compatible

MK PS Femoral Component

Materials: CoCrMo

REF	REF (prev)	SIZE	Specification	L/R	AP (mm)	ML (mm)
J1005-1-1L	F13BB-PA00047	1 L	F0-53/47 L-I	L	49	54
J1005-1-2L	F13BB-PA00048	2 L	F1-56/52 L-I	L	52	57
J1005-1-3NL	F13BB-PA00049	3N L	F1-57/53 L-I	L	54	57
J1005-1-3L	F13BB-PA00050	3 L	F2-60/55 L-I	L	54	60
J1005-1-4NL	F13BB-PA00051	4N L	F2-60/56 L-I	L	57	60
J1005-1-4L	F13BB-PA00052	4 L	F3-63/58 L-I	L	57	63
J1005-1-5NL	F13BB-PA00053	5N L	F3-63/59 L-I	L	60	63
J1005-1-5L	F13BB-PA00054	5 L	F4-67/61 L-I	L	60	66
J1005-1-6NL	F13BB-PA00055	6N L	F4-66/64 L-I	L	63	66
J1005-1-6L	F13BB-PA00056	6 L	F5-70/64 L-I	L	63	69
J1005-1-7L	F13BB-PA00057	7 L	F5-73/67 L-I	L	68	72
J1005-1-8L	F13BB-PA00058	8 L	F6-76/70 L-I	L	70	75
J1005-1-9L	F13BB-PA00196	9 L	F6-77/70 L-I	L	73	78
J1005-1-10L	F13BB-PA00060	10 L	F7-82/75 L-I	L	75	81
J1005-1-1R	F13BB-PA00061	1 R	F0-53/47 R-I	R	49	54
J1005-1-2R	F13BB-PA00062	2 R	F1-56/52 R-I	R	52	57
J1005-1-3NR	F13BB-PA00063	3N R	F1-57/53 R-I	R	54	57
J1005-1-3R	F13BB-PA00064	3 R	F2-60/55 R-I	R	54	60
J1005-1-4NR	F13BB-PA00065	4N R	F2-60/56 R-I	R	57	60
J1005-1-4R	F13BB-PA00066	4 R	F3-63/58 R-I	R	57	63
J1005-1-5NR	F13BB-PA00067	5N R	F3-63/59 R-I	R	60	63
J1005-1-5R	F13BB-PA00068	5 R	F4-67/61 R-I	R	60	66
J1005-1-6NR	F13BB-PA00069	6N R	F4-66/64 R-I	R	63	66
J1005-1-6R	F13BB-PA00070	6 R	F5-70/64 R-I	R	63	69
J1005-1-7R	F13BB-PA00071	7 R	F5-73/67 R-I	R	68	72
J1005-1-8R	F13BB-PA00072	8 R	F6-76/70 R-I	R	70	75
J1005-1-9R	F13BB-PA00197	9 R	F6-77/70 R-I	R	73	78
J1005-1-10R	F13BB-PA00074	10 R	F7-82/75 R-I	R	75	81

MK PS Fixed Bearing Insert

Materials: UHMWPE

REF	REF (prev)	SIZE	Specification	Thickness (mm)	AP (mm)	ML (mm)
J1006-1-106	F13BB-PA00079	SZ1-6mm	T0-60/39/6-I	6	39	59
J1006-1-107	F13BB-PA00164	SZ1-7mm	T0-60/39/7-I	7	39	59
J1006-1-108	F13BB-PA00080	SZ1-8mm	T0-60/39/8-I	8	39	59
J1006-1-109	F13BB-PA00165	SZ1-9mm	T0-60/39/9-I	9	39	59
J1006-1-110	F13BB-PA00081	SZ1-10mm	T0-60/39/10-I	10	39	59
J1006-1-111	F13BB-PA00166	SZ1-11mm	T0-60/39/11-I	11	39	59
J1006-1-112	F13BB-PA00082	SZ1-12mm	T0-60/39/12-I	12	39	59
J1006-1-114	F13BB-PA00083	SZ1-14mm	T0-60/39/14-I	14	39	59
J1006-1-116	F13BB-PA00084	SZ1-16mm	T0-60/39/16-I	16	39	59
J1006-1-118	F13BB-PA00085	SZ1-18mm	T0-60/39/18-I	18	39	59
J1006-1-206	F13BB-PA00086	SZ2-6mm	T0-60/40/6-I	6	39	59
J1006-1-207	F13BB-PA00167	SZ2-7mm	T0-60/40/7-I	7	39	59
J1006-1-208	F13BB-PA00087	SZ2-8mm	T0-60/40/8-I	8	39	59
J1006-1-209	F13BB-PA00168	SZ2-9mm	T0-60/40/9-I	9	39	59
J1006-1-210	F13BB-PA00088	SZ2-10mm	T0-60/40/10-I	10	39	59
J1006-1-211	F13BB-PA00169	SZ2-11mm	T0-60/40/11-I	11	39	59
J1006-1-212	F13BB-PA00089	SZ2-12mm	T0-60/40/12-I	12	39	59
J1006-1-214	F13BB-PA00090	SZ2-14mm	T0-60/40/14-I	14	39	59
J1006-1-216	F13BB-PA00091	SZ2-16mm	T0-60/40/16-I	16	39	59

MK FB Knee Arthroplasty (Fixed Bearing Insert) - Part 2

Materials: UHMWPE

REF	REF (prev)	SIZE	Specification	Thickness (mm)	AP (mm)	ML (mm)
J1006-1-218	F13BB-PA00092	SZ2-18mm	T0-60/40/18-I	18	39	59
J1006-1-306	F13BB-PA00093	SZ3-6mm	T0-61/41/6-I	6	41	62
J1006-1-307	F13BB-PA00170	SZ3-7mm	T0-61/41/7-I	7	41	62
J1006-1-308	F13BB-PA00094	SZ3-8mm	T0-61/41/8-I	8	41	62
J1006-1-309	F13BB-PA00171	SZ3-9mm	T0-61/41/9-I	9	41	62
J1006-1-310	F13BB-PA00095	SZ3-10mm	T0-61/41/10-I	10	41	62
J1006-1-311	F13BB-PA00172	SZ3-11mm	T0-61/41/11-I	11	41	62
J1006-1-312	F13BB-PA00096	SZ3-12mm	T0-61/41/12-I	12	41	62
J1006-1-314	F13BB-PA00097	SZ3-14mm	T0-61/41/14-I	14	41	62
J1006-1-316	F13BB-PA00098	SZ3-16mm	T0-61/41/16-I	16	41	62
J1006-1-318	F13BB-PA00099	SZ3-18mm	T0-61/41/18-I	18	41	62
J1006-1-406	F13BB-PA00100	SZ4-6mm	T1-65/43/6-I	6	43	65
J1006-1-407	F13BB-PA00173	SZ4-7mm	T1-65/43/7-I	7	43	65
J1006-1-408	F13BB-PA00101	SZ4-8mm	T1-65/43/8-I	8	43	65
J1006-1-409	F13BB-PA00174	SZ4-9mm	T1-65/43/9-I	9	43	65
J1006-1-410	F13BB-PA00102	SZ4-10mm	T1-65/43/10-I	10	43	65
J1006-1-411	F13BB-PA00175	SZ4-11mm	T1-65/43/11-I	11	43	65
J1006-1-412	F13BB-PA00103	SZ4-12mm	T1-65/43/12-I	12	43	65
J1006-1-414	F13BB-PA00104	SZ4-14mm	T1-65/43/14-I	14	43	65
J1006-1-416	F13BB-PA00105	SZ4-16mm	T1-65/43/16-I	16	43	65
J1006-1-418	F13BB-PA00106	SZ4-18mm	T1-65/43/18-I	18	43	65
J1006-1-506	F13BB-PA00107	SZ5-6mm	T2-68/44/6-I	6	45	68
J1006-1-507	F13BB-PA00176	SZ5-7mm	T2-68/44/7-I	7	45	68
J1006-1-508	F13BB-PA00108	SZ5-8mm	T2-68/44/8-I	8	45	68
J1006-1-509	F13BB-PA00177	SZ5-9mm	T2-68/44/9-I	9	45	68
J1006-1-510	F13BB-PA00109	SZ5-10mm	T2-68/44/10-I	10	45	68
J1006-1-511	F13BB-PA00178	SZ5-11mm	T2-68/44/11-I	11	45	68
J1006-1-512	F13BB-PA00110	SZ5-12mm	T2-68/44/12-I	12	45	68
J1006-1-514	F13BB-PA00111	SZ5-14mm	T2-68/44/14-I	14	45	68
J1006-1-516	F13BB-PA00112	SZ5-16mm	T2-68/44/16-I	16	45	68
J1006-1-518	F13BB-PA00113	SZ5-18mm	T2-68/44/18-I	18	45	68
J1006-1-606	F13BB-PA00114	SZ6-6mm	T2+-71/47/6-I	6	47	71
J1006-1-607	F13BB-PA00179	SZ6-7mm	T2+-71/47/7-I	7	47	71
J1006-1-608	F13BB-PA00115	SZ6-8mm	T2+-71/47/8-I	8	47	71
J1006-1-609	F13BB-PA00180	SZ6-9mm	T2+-71/47/9-I	9	47	71
J1006-1-610	F13BB-PA00116	SZ6-10mm	T2+-71/47/10-I	10	47	71
J1006-1-611	F13BB-PA00181	SZ6-11mm	T2+-71/47/11-I	11	47	71
J1006-1-612	F13BB-PA00117	SZ6-12mm	T2+-71/47/12-I	12	47	71
J1006-1-614	F13BB-PA00118	SZ6-14mm	T2+-71/47/14-I	14	47	71
J1006-1-616	F13BB-PA00119	SZ6-16mm	T2+-71/47/16-I	16	47	71
J1006-1-618	F13BB-PA00120	SZ6-18mm	T2+-71/47/18-I	18	47	71
J1006-1-706	F13BB-PA00121	SZ7-6mm	T3-74/48/6-I	6	49	74
J1006-1-707	F13BB-PA00182	SZ7-7mm	T3-74/48/7-I	7	49	74
J1006-1-708	F13BB-PA00122	SZ7-8mm	T3-74/48/8-I	8	49	74
J1006-1-709	F13BB-PA00183	SZ7-9mm	T3-74/48/9-I	9	49	74
J1006-1-710	F13BB-PA00123	SZ7-10mm	T3-74/48/10-I	10	49	74
J1006-1-711	F13BB-PA00184	SZ7-11mm	T3-74/48/11-I	11	49	74
J1006-1-712	F13BB-PA00124	SZ7-12mm	T3-74/48/12-I	12	49	74
J1006-1-714	F13BB-PA00125	SZ7-14mm	T3-74/48/14-I	14	49	74
J1006-1-716	F13BB-PA00126	SZ7-16mm	T3-74/48/16-I	16	49	74
J1006-1-718	F13BB-PA00127	SZ7-18mm	T3-74/48/18-I	18	49	74
J1006-1-806	F13BB-PA00128	SZ8-6mm	T3+-77/51/6-I	6	50	77
J1006-1-807	F13BB-PA00185	SZ8-7mm	T3+-77/51/7-I	7	50	77
J1006-1-808	F13BB-PA00129	SZ8-8mm	T3+-77/51/8-I	8	50	77
J1006-1-809	F13BB-PA00186	SZ8-9mm	T3+-77/51/9-I	9	50	77
J1006-1-810	F13BB-PA00130	SZ8-10mm	T3+-77/51/10-I	10	50	77
J1006-1-811	F13BB-PA00187	SZ8-11mm	T3+-77/51/11-I	11	50	77
J1006-1-812	F13BB-PA00131	SZ8-12mm	T3+-77/51/12-I	12	50	77

MK FB Knee Arthroplasty (Fixed Bearing Insert) - Part 3

Materials: UHMWPE

REF	REF (prev)	SIZE	Specification	Thickness (mm)	AP (mm)	ML (mm)
J1006-1-814	F13BB-PA00132	SZ8-14mm	T3+-77/51/14-I	14	50	77
J1006-1-816	F13BB-PA00133	SZ8-16mm	T3+-77/51/16-I	16	50	77
J1006-1-818	F13BB-PA00134	SZ8-18mm	T3+-77/51/18-I	18	50	77
J1006-1-906	F13BB-PA00135	SZ9-6mm	T4-80/52/6-I	6	52	80
J1006-1-907	F13BB-PA00188	SZ9-7mm	T4-80/52/7-I	7	52	80
J1006-1-908	F13BB-PA00136	SZ9-8mm	T4-80/52/8-I	8	52	80
J1006-1-909	F13BB-PA00189	SZ9-9mm	T4-80/52/9-I	9	52	80
J1006-1-910	F13BB-PA00137	SZ9-10mm	T4-80/52/10-I	10	52	80
J1006-1-911	F13BB-PA00190	SZ9-11mm	T4-80/52/11-I	11	52	80
J1006-1-912	F13BB-PA00138	SZ9-12mm	T4-80/52/12-I	12	52	80
J1006-1-914	F13BB-PA00139	SZ9-14mm	T4-80/52/14-I	14	52	80
J1006-1-916	F13BB-PA00140	SZ9-16mm	T4-80/52/16-I	16	52	80
J1006-1-918	F13BB-PA00141	SZ9-18mm	T4-80/52/18-I	18	52	80
J1006-1-1006	F13BB-PA00142	SZ10-6mm	T4+-82/54/6-I	6	54	83
J1006-1-1007	F13BB-PA00191	SZ10-7mm	T4+-82/54/7-I	7	54	83
J1006-1-1008	F13BB-PA00143	SZ10-8mm	T4+-82/54/8-I	8	54	83
J1006-1-1009	F13BB-PA00192	SZ10-9mm	T4+-82/54/9-I	9	54	83
J1006-1-1010	F13BB-PA00144	SZ10-10mm	T4+-82/54/10-I	10	54	83
J1006-1-1011	F13BB-PA00193	SZ10-11mm	T4+-82/54/11-I	11	54	83
J1006-1-1012	F13BB-PA00145	SZ10-12mm	T4+-82/54/12-I	12	54	83
J1006-1-1014	F13BB-PA00146	SZ10-14mm	T4+-82/54/14-I	14	54	83
J1006-1-1016	F13BB-PA00147	SZ10-16mm	T4+-82/54/16-I	16	54	83
J1006-1-1018	F13BB-PA00148	SZ10-18mm	T4+-82/54/18-I	18	54	83

MK Femoral Instrument Set (XJ1004-E)

REF	Name	Specification	Qty
XJ0419H	Universal Pin	Φ3.2mm*80mm	10
XJ0420H	Threaded Headed Pin	Φ3.2mm*70mm	4
XJ0421H	Tibial Headed Pin	Φ3.2mm*25mm	2
XJ0422H	Tibial Base Headed Pin	Φ4.6mm*25mm	3
XJ0423H	Threaded Tibial Base Pin	Φ4.6mm*25mm	3
XJ0425N	Pin Jack	/	1
XJ0426N	Hex Driver	/	1
XJ0427N	Pin Inserter	/	1
XJ0428N	Power Driver	/	1
XJ0429V	3.2mm Drill	Φ3.2mm	1
XJ0430V	Step Drill	/	1
XJ0431N	Femoral Valgus Alignment Guide	/	1
XJ0432V	Distal Femoral Cutting Block	/	1
XJ0433N	Angle Wing Gauge	/	1
XJ0434N	IM Rod (T-Handle)	Φ8mm	1
XJ0435N	Alignment Rod	4.7mm	1
XJ0436N	Femoral Sizer	/	1
XJ0437V	4-in-1 Cutting Block Size3/N3	3/N3	1
XJ0438V	4-in-1 Cutting Block Size4/N4	4/N4	1
XJ0439V	4-in-1 Cutting Block Size5/N5	5/N5	1
XJ0440V	4-in-1 Cutting Block Size6/N6	6/N6	1
XJ0441V	4-in-1 Cutting Block Size7	7	1
XJ0442V	4-in-1 Cutting Block Size8	8	1
XJ0443N	4-in-1 Cutting Block Extractor	/	1
XJ0444V	Femoral/Patella Drill	Φ7mm	1
XJ0445N	Femoral Inserter/Extractor	/	1
XJ0446N	Femoral Impactor	/	1

MK Femoral Instrument Set (XJ1004-E) - Part 2

REF	Name	Specification	Qty
XJ0447N	Universal Handle	/	2
XJ0448N	Hammer	/	1
XJ0449N	L Hex Driver	/	1
XJ0450N	Convert Connector	/	1
XJ0451N	Quick Release Handle	/	1
XJ0452N	Vernier Caliper	/	1
XJ0453N	MK Femoral Instrument Case	/	1
Total			52

Optional

REF	Name	Specification	Qty
XJ0424H	Threaded Non-Headed Pin	Φ3.2mm*70mm	4
Total			4

MK PS Standard Knee Instrument Set (XJ1007-E) - Part 1

REF	Name	Specification	Qty
XJ0499N	Femoral Trial Size3L/N3L	3L/N3L	1
XJ0500N	Femoral Trial Size3R/N3R	3R/N3R	1
XJ0501N	Femoral Trial Size4L/N4L	4L/N4L	1
XJ0502N	Femoral Trial Size4R/N4R	4R/N4R	1
XJ0503N	Femoral Trial Size5L/N5L	5L/N5L	1
XJ0504N	Femoral Trial Size5R/N5R	5R/N5R	1
XJ0505N	Femoral Trial Size6L/N6L	6L/N6L	1
XJ0506N	Femoral Trial Size6R/N6R	6R/N6R	1
XJ0507N	Femoral Trial Size7L	7L	1
XJ0508N	Femoral Trial Size7R	7R	1
XJ0509N	Femoral Trial Size8L	8L	1
XJ0510N	Femoral Trial Size8R	8R	1
XJ0511V	PS Box Cutting Guide Size3/N3	3/N3	1
XJ0512V	PS Box Cutting Guide Size4/N4	4/N4	1
XJ0513V	PS Box Cutting Guide Size5/N5	5/N5	1
XJ0514V	PS Box Cutting Guide Size6/N6	6/N6	1
XJ0515V	PS Box Cutting Guide Size7	7	1
XJ0516V	PS Box Cutting Guide Size8	8	1
XJ0517V	Box Chisel Size3/N3	3/N3	1
XJ0518V	Box Chisel Size4/N4	4/N4	1
XJ0519V	Box Chisel Size5/N5	5/N5	1
XJ0520V	Box Chisel Size6/N6	6/N6	1
XJ0521V	Box Chisel Size7	7	1
XJ0522V	Box Chisel Size8	8	1
XJ0523N	PS Box Reamer Guide	/	1
XJ0524N	PS Box Resection Stop Plate	/	2
XJ0525V	PS Box Reamer	/	1
XJ0526N	Insert Trail Size3-6mm	SZ3-6mm	1
XJ0527N	Insert Trail Size3-8mm	SZ3-8mm	1
XJ0528N	Insert Trail Size4-6mm	SZ4-6mm	1
XJ0529N	Insert Trail Size4-8mm	SZ4-8mm	1
XJ0530N	Insert Trail Size5-6mm	SZ5-6mm	1
XJ0531N	Insert Trail Size5-8mm	SZ5-8mm	1
XJ0532N	Insert Trail Size6-6mm	SZ6-6mm	1
XJ0533N	Insert Trail Size6-8mm	SZ6-8mm	1
XJ0534N	Insert Trail Size7-6mm	SZ7-6mm	1
XJ0535N	Insert Trail Size7-8mm	SZ7-8mm	1

MK PS Standard Knee Instrument Set (XJ1007-E) - Part 2

REF	Name	Specification	Qty
XJ0536N	Insert Trail Size8-6mm	SZ8-6mm	1
XJ0537N	Insert Trail Size8-8mm	SZ8-8mm	1
XJ0581N	Insert Trail Size3-7mm	SZ3-7mm	1
XJ0582N	Insert Trail Size4-7mm	SZ4-7mm	1
XJ0583N	Insert Trail Size5-7mm	SZ5-7mm	1
XJ0584N	Insert Trail Size6-7mm	SZ6-7mm	1
XJ0585N	Insert Trail Size7-7mm	SZ7-7mm	1
XJ0586N	Insert Trail Size8-7mm	SZ8-7mm	1
XJ0837N	MK PS Standard Knee Instrument Case	/	1
Total			47

Optional

REF	Name	Specification	Qty
XJ0579N	Insert Trail Size1-7mm	SZ1-7mm	1
XJ0580N	Insert Trail Size2-7mm	SZ2-7mm	1
XJ0587N	Insert Trail Size9-7mm	SZ9-7mm	1
XJ0588N	Insert Trail Size10-7mm	SZ10-7mm	1
XJ0538N	Slap hammer	/	1
XJ0648N	EM Alignment Guide(Spiked Fixation)	/	1
XJ0649V	Left Tibial Cutting Block 3°	/	1
XJ0652V	Right Tibial Cutting Block 3°	/	1
XJ0539V	Symmetrical Cutting Block 0°	/	1
XJ0655V	Symmetrical Cutting Block 3°	/	1
XJ0540N	Balance Spacer 11-16mm	11-16	1
XJ0542N	Supplementary Block 8mm	+8mm	1
XJ0460V	Balance Spacer Block 4mm	4mm	1
XJ0470V	Stem Drill 20mm	20mm	1
XJ0471V	Stem Drill 30mm	30mm	1
Total			15

MK PS Knee Instrument Set (Small Size) (XJ1009-E)

REF	Name	Specification	Qty
XJ0562N	Femoral Trial Size1L	1L	1
XJ0563N	Femoral Trial Size1R	1R	1
XJ0564N	Femoral Trial Size2L	2L	1
XJ0565N	Femoral Trial Size2R	2R	1
XJ0566V	PS Box Cutting Guide Size1	1	1
XJ0567V	PS Box Cutting Guide Size2	2	1
XJ0568V	Box Chisel Size1	1	1
XJ0569V	Box Chisel Size2	2	1
XJ0570N	Insert Trail Size1-6mm	SZ1-6mm	1
XJ0571N	Insert Trail Size1-8mm	SZ1-8mm	1
XJ0572N	Insert Trail Size2-6mm	SZ2-6mm	1
XJ0573N	Insert Trail Size2-8mm	SZ2-8mm	1
XJ0574N	Tibial Trial Size1	1	1
XJ0575N	Tibial Trial Size2	2	1
XJ0576V	4-in-1 Cutting Block Size1	1	1
XJ0577V	4-in-1 Cutting Block Size2	2	1
XJ0578N	MK PS Knee Instrument Case (Small Size)	/	1
Total			17

MK PS Knee Instrument Set (Large Size) (XJ1008-E)

REF	Name	Specification	Qty
XJ0545N	Femoral Trial Size9L	9L	1
XJ0546N	Femoral Trial Size9R	9R	1
XJ0547N	Femoral Trial Size10L	10L	1
XJ0548N	Femoral Trial Size10R	10R	1
XJ0549V	PS Box Cutting Guide Size9	9	1
XJ0550V	PS Box Cutting Guide Size10	10	1
XJ0551V	Box Chisel Size9	9	1
XJ0552V	Box Chisel Size10	10	1
XJ0553N	Insert Trail Size9-6mm	SZ9-6mm	1
XJ0554N	Insert Trail Size9-8mm	SZ9-8mm	1
XJ0555N	Insert Trail Size10-6mm	SZ10-6mm	1
XJ0556N	Insert Trail Size10-8mm	SZ10-8mm	1
XJ0557N	Tibial Trial Size9	9	1
XJ0558N	Tibial Trial Size10	10	1
XJ0559V	4-in-1 Cutting Block Size9	9	1
XJ0560V	4-in-1 Cutting Block Size10	10	1
XJ0561N	MK PS Knee Instrument Case (Large Size)	/	1
Total			17

MK CR Femoral Component

Materials: CoCrMo

REF	REF (prev)	SIZE	Specification	AP (mm)	ML (mm)
J1011-1-1L	F13BB-PA00255	1 L	SIZE 1 LEFT	49	54
J1011-1-2L	F13BB-PA00256	2 L	SIZE 2 LEFT	52	57
J1011-1-3NL	F13BB-PA00257	3N L	SIZE 3N LEFT	54	57
J1011-1-3L	F13BB-PA00258	3 L	SIZE 3 LEFT	54	60
J1011-1-4NL	F13BB-PA00259	4N L	SIZE 4N LEFT	57	60
J1011-1-4L	F13BB-PA00260	4 L	SIZE 4 LEFT	57	63
J1011-1-5NL	F13BB-PA00261	5N L	SIZE 5N LEFT	60	63
J1011-1-5L	F13BB-PA00262	5 L	SIZE 5 LEFT	60	66
J1011-1-6NL	F13BB-PA00263	6N L	SIZE 6N LEFT	63	66
J1011-1-6L	F13BB-PA00264	6 L	SIZE 6 LEFT	63	69
J1011-1-7L	F13BB-PA00265	7 L	SIZE 7 LEFT	68	72
J1011-1-8L	F13BB-PA00266	8 L	SIZE 8 LEFT	70	75
J1011-1-9L	F13BB-PA00267	9 L	SIZE 9 LEFT	73	78
J1011-1-10L	F13BB-PA00268	10 L	SIZE 10 LEFT	75	81
J1011-1-1R	F13BB-PA00269	1 R	SIZE 1 RIGHT	49	54
J1011-1-2R	F13BB-PA00270	2 R	SIZE 2 RIGHT	52	57
J1011-1-3NR	F13BB-PA00271	3N R	SIZE 3N RIGHT	54	57
J1011-1-3R	F13BB-PA00272	3 R	SIZE 3 RIGHT	54	60
J1011-1-4NR	F13BB-PA00273	4N R	SIZE 4N RIGHT	57	60
J1011-1-4R	F13BB-PA00274	4 R	SIZE 4 RIGHT	57	63
J1011-1-5NR	F13BB-PA00275	5N R	SIZE 5N RIGHT	60	63
J1011-1-5R	F13BB-PA00276	5 R	SIZE 5 RIGHT	60	66
J1011-1-6NR	F13BB-PA00277	6N R	SIZE 6N RIGHT	63	66
J1011-1-6R	F13BB-PA00278	6 R	SIZE 6 RIGHT	63	69
J1011-1-7R	F13BB-PA00279	7 R	SIZE 7 RIGHT	68	72
J1011-1-8R	F13BB-PA00280	8 R	SIZE 8 RIGHT	70	75
J1011-1-9R	F13BB-PA00281	9 R	SIZE 9 RIGHT	73	78
J1011-1-10R	F13BB-PA00282	10 R	SIZE 10 RIGHT	75	81

MK CR Fixed Bearing Insert

Materials: UHMWPE

REF	REF (prev)	SIZE	Specification	Thickness (mm)	AP (mm)	ML (mm)
J1015-1-106	F13BB-PA00326	SZ1-6mm	SIZE 1-6mm	6	39	59
J1015-1-107	F13BB-PA00327	SZ1-7mm	SIZE 1-7mm	7	39	59
J1015-1-108	F13BB-PA00328	SZ1-8mm	SIZE 1-8mm	8	39	59
J1015-1-109	F13BB-PA00329	SZ1-9mm	SIZE 1-9mm	9	39	59
J1015-1-110	F13BB-PA00330	SZ1-10mm	SIZE 1-10mm	10	39	59
J1015-1-111	F13BB-PA00331	SZ1-11mm	SIZE 1-11mm	11	39	59
J1015-1-112	F13BB-PA00332	SZ1-12mm	SIZE 1-12mm	12	39	59
J1015-1-114	F13BB-PA00333	SZ1-14mm	SIZE 1-14mm	14	39	59
J1015-1-116	F13BB-PA00334	SZ1-16mm	SIZE 1-16mm	16	39	59
J1015-1-118	F13BB-PA00335	SZ1-18mm	SIZE 1-18mm	18	39	59
J1015-1-206	F13BB-PA00336	SZ2-6mm	SIZE 2-6mm	6	39	59
J1015-1-207	F13BB-PA00337	SZ2-7mm	SIZE 2-7mm	7	39	59
J1015-1-208	F13BB-PA00338	SZ2-8mm	SIZE 2-8mm	8	39	59
J1015-1-209	F13BB-PA00339	SZ2-9mm	SIZE 2-9mm	9	39	59
J1015-1-210	F13BB-PA00340	SZ2-10mm	SIZE 2-10mm	10	39	59
J1015-1-211	F13BB-PA00341	SIZE 2-11mm	SIZE 2-11mm	11	39	59
J1015-1-212	F13BB-PA00342	SZ2-12mm	SIZE 2-12mm	12	39	59
J1015-1-214	F13BB-PA00343	SZ2-14mm	SIZE 2-14mm	14	39	59
J1015-1-216	F13BB-PA00344	SZ2-16mm	SIZE 2-16mm	16	39	59
J1015-1-218	F13BB-PA00345	SZ2-18mm	SIZE 2-18mm	18	39	59
J1015-1-306	F13BB-PA00346	SZ3-6mm	SIZE 3-6mm	6	41	62
J1015-1-307	F13BB-PA00347	SZ3-7mm	SIZE 3-7mm	7	41	62
J1015-1-308	F13BB-PA00348	SZ3-8mm	SIZE 3-8mm	8	41	62
J1015-1-309	F13BB-PA00349	SZ3-9mm	SIZE 3-9mm	9	41	62
J1015-1-310	F13BB-PA00350	SZ3-10mm	SIZE 3-10mm	10	41	62
J1015-1-311	F13BB-PA00351	SZ3-11mm	SIZE 3-11mm	11	41	62
J1015-1-312	F13BB-PA00352	SZ3-12mm	SIZE 3-12mm	12	41	62
J1015-1-314	F13BB-PA00353	SZ3-14mm	SIZE 3-14mm	14	41	62
J1015-1-316	F13BB-PA00354	SZ3-16mm	SIZE 3-16mm	16	41	62
J1015-1-318	F13BB-PA00355	SZ3-18mm	SIZE 3-18mm	18	41	62
J1015-1-406	F13BB-PA00356	SZ4-6mm	SIZE 4-6mm	6	43	65
J1015-1-407	F13BB-PA00357	SZ4-7mm	SIZE 4-7mm	7	43	65
J1015-1-408	F13BB-PA00358	SZ4-8mm	SIZE 4-8mm	8	43	65
J1015-1-409	F13BB-PA00359	SZ4-9mm	SIZE 4-9mm	9	43	65
J1015-1-410	F13BB-PA00360	SZ4-10mm	SIZE 4-10mm	10	43	65
J1015-1-411	F13BB-PA00361	SZ4-11mm	SIZE 4-11mm	11	43	65
J1015-1-412	F13BB-PA00362	SZ4-12mm	SIZE 4-12mm	12	43	65
J1015-1-414	F13BB-PA00363	SZ4-14mm	SIZE 4-14mm	14	43	65
J1015-1-416	F13BB-PA00364	SZ4-16mm	SIZE 4-16mm	16	43	65
J1015-1-418	F13BB-PA00365	SZ4-18mm	SIZE 4-18mm	18	43	65
J1015-1-506	F13BB-PA00366	SZ5-6mm	SIZE 5-6mm	6	45	68
J1015-1-507	F13BB-PA00367	SZ5-7mm	SIZE 5-7mm	7	45	68
J1015-1-508	F13BB-PA00368	SZ5-8mm	SIZE 5-8mm	8	45	68
J1015-1-509	F13BB-PA00369	SZ5-9mm	SIZE 5-9mm	9	45	68
J1015-1-510	F13BB-PA00370	SZ5-10mm	SIZE 5-10mm	10	45	68
J1015-1-511	F13BB-PA00371	SZ5-11mm	SIZE 5-11mm	11	45	68
J1015-1-512	F13BB-PA00372	SZ5-12mm	SIZE 5-12mm	12	45	68
J1015-1-514	F13BB-PA00373	SZ5-14mm	SIZE 5-14mm	14	45	68
J1015-1-516	F13BB-PA00374	SZ5-16mm	SIZE 5-16mm	16	45	68
J1015-1-518	F13BB-PA00375	SZ5-18mm	SIZE 5-18mm	18	45	68
J1015-1-606	F13BB-PA00376	SZ6-6mm	SIZE 6-6mm	6	47	71
J1015-1-607	F13BB-PA00377	SZ6-7mm	SIZE 6-7mm	7	47	71
J1015-1-608	F13BB-PA00378	SZ6-8mm	SIZE 6-8mm	8	47	71
J1015-1-609	F13BB-PA00379	SZ6-9mm	SIZE 6-9mm	9	47	71
J1015-1-610	F13BB-PA00380	SZ6-10mm	SIZE 6-10mm	10	47	71

MK CR Fixed Bearing Insert - Part 2

Materials: UHMWPE

REF	REF(prev)	SIZE	Specification	Thickness	AP	ML
J1015-1-611	F13BB-PA00381	SZ6-11mm	SIZE 6-11mm	11	47	71
J1015-1-612	F13BB-PA00382	SZ6-12mm	SIZE 6-12mm	12	47	71
J1015-1-614	F13BB-PA00383	SZ6-14mm	SIZE 6-14mm	14	47	71
J1015-1-616	F13BB-PA00384	SZ6-16mm	SIZE 6-16mm	16	47	71
J1015-1-618	F13BB-PA00385	SZ6-18mm	SIZE 6-18mm	18	47	71
J1015-1-706	F13BB-PA00386	SZ7-6mm	SIZE 7-6mm	6	49	74
J1015-1-707	F13BB-PA00387	SZ7-7mm	SIZE 7-7mm	7	49	74
J1015-1-708	F13BB-PA00388	SZ7-8mm	SIZE 7-8mm	8	49	74
J1015-1-709	F13BB-PA00389	SZ7-9mm	SIZE 7-9mm	9	49	74
J1015-1-710	F13BB-PA00390	SZ7-10mm	SIZE 7-10mm	10	49	74
J1015-1-711	F13BB-PA00391	SZ7-11mm	SIZE 7-11mm	11	49	74
J1015-1-712	F13BB-PA00392	SZ7-12mm	SIZE 7-12mm	12	49	74
J1015-1-714	F13BB-PA00393	SZ7-14mm	SIZE 7-14mm	14	49	74
J1015-1-716	F13BB-PA00394	SZ7-16mm	SIZE 7-16mm	16	49	74
J1015-1-718	F13BB-PA00395	SZ7-18mm	SIZE 7-18mm	18	49	74
J1015-1-806	F13BB-PA00396	SZ8-6mm	SIZE 8-6mm	6	50	77
J1015-1-807	F13BB-PA00397	SZ8-7mm	SIZE 8-7mm	7	50	77
J1015-1-808	F13BB-PA00398	SZ8-8mm	SIZE 8-8mm	8	50	77
J1015-1-809	F13BB-PA00399	SZ8-9mm	SIZE 8-9mm	9	50	77
J1015-1-810	F13BB-PA00400	SZ8-10mm	SIZE 8-10mm	10	50	77
J1015-1-811	F13BB-PA00401	SZ8-11mm	SIZE 8-11mm	11	50	77
J1015-1-812	F13BB-PA00402	SZ8-12mm	SIZE 8-12mm	12	50	77
J1015-1-814	F13BB-PA00403	SZ8-14mm	SIZE 8-14mm	14	50	77
J1015-1-816	F13BB-PA00404	SZ8-16mm	SIZE 8-16mm	16	50	77
J1015-1-818	F13BB-PA00405	SZ8-18mm	SIZE 8-18mm	18	50	77
J1015-1-906	F13BB-PA00406	SZ9-6mm	SIZE 9-6mm	6	52	80
J1015-1-907	F13BB-PA00407	SZ9-7mm	SIZE 9-7mm	7	52	80
J1015-1-908	F13BB-PA00408	SZ9-8mm	SIZE 9-8mm	8	52	80
J1015-1-909	F13BB-PA00409	SZ9-9mm	SIZE 9-9mm	9	52	80
J1015-1-910	F13BB-PA00410	SZ9-10mm	SIZE 9-10mm	10	52	80
J1015-1-911	F13BB-PA00411	SZ9-11mm	SIZE 9-11mm	11	52	80
J1015-1-912	F13BB-PA00412	SZ9-12mm	SIZE 9-12mm	12	52	80
J1015-1-914	F13BB-PA00413	SZ9-14mm	SIZE 9-14mm	14	52	80
J1015-1-916	F13BB-PA00414	SZ9-16mm	SIZE 9-16mm	16	52	80
J1015-1-918	F13BB-PA00415	SZ9-18mm	SIZE 9-18mm	18	52	80
J1015-1-1006	F13BB-PA00416	SZ10-6mm	SIZE 10-6mm	6	54	83
J1015-1-1007	F13BB-PA00417	SZ10-7mm	SIZE 10-7mm	7	54	83
J1015-1-1008	F13BB-PA00418	SZ10-8mm	SIZE 10-8mm	8	54	83
J1015-1-1009	F13BB-PA00419	SZ10-9mm	SIZE 10-9mm	9	54	83
J1015-1-1010	F13BB-PA00420	SZ10-10mm	SIZE 10-10mm	10	54	83
J1015-1-1011	F13BB-PA00421	SZ10-11mm	SIZE 10-11mm	11	54	83
J1015-1-1012	F13BB-PA00422	SZ10-12mm	SIZE 10-12mm	12	54	83
J1015-1-1014	F13BB-PA00423	SZ10-14mm	SIZE 10-14mm	14	54	83
J1015-1-1016	F13BB-PA00424	SZ10-16mm	SIZE 10-16mm	16	54	83
J1015-1-1018	F13BB-PA00425	SZ10-18mm	SIZE 10-18mm	18	54	83

MK CR Standard Knee Instrument Set (XJ1010-E)

REF	Name	Specification	Qty
XJ0664N	CR Femoral Trial SIZE 3 LEFT/N3 LEFT	SIZE 3 LEFT / N3 LEFT	1
XJ0665N	CR Femoral Trial SIZE 4 LEFT/N4 LEFT	SIZE 4 LEFT / N4 LEFT	1
XJ0666N	CR Femoral Trial SIZE 5 LEFT/N5 LEFT	SIZE 5 LEFT / N5 LEFT	1
XJ0667N	CR Femoral Trial SIZE 6 LEFT/N6 LEFT	SIZE 6 LEFT / N6 LEFT	1
XJ0668N	CR Femoral Trial SIZE 7 LEFT	SIZE 7 LEFT	1
XJ0669N	CR Femoral Trial SIZE 8 LEFT	SIZE 8 LEFT	1
XJ0670N	CR Femoral Trial SIZE 3 RIGHT/N3 RIGHT	SIZE 3 RIGHT / N3 RIGHT	1
XJ0671N	CR Femoral Trial SIZE 4 RIGHT/N4 RIGHT	SIZE 4 RIGHT / N4 RIGHT	1
XJ0672N	CR Femoral Trial SIZE 5 RIGHT/N5 RIGHT	SIZE 5 RIGHT / N5 RIGHT	1
XJ0673N	CR Femoral Trial SIZE 6 RIGHT/N6 RIGHT	SIZE 6 RIGHT / N6 RIGHT	1
XJ0674N	CR Femoral Trial SIZE 7 RIGHT	SIZE 7 RIGHT	1
XJ0675N	CR Femoral Trial SIZE 8 RIGHT	SIZE 8 RIGHT	1
XJ0676N	CR Fixed Insert Trail SIZE 3-6mm	SIZE 3-6mm	1
XJ0677N	CR Fixed Insert Trail SIZE 4-6mm	SIZE 4-6mm	1
XJ0678N	CR Fixed Insert Trail SIZE 5-6mm	SIZE 5-6mm	1
XJ0679N	CR Fixed Insert Trail SIZE 6-6mm	SIZE 6-6mm	1
XJ0680N	CR Fixed Insert Trail SIZE 7-6mm	SIZE 7-6mm	1
XJ0681N	CR Fixed Insert Trail SIZE 8-6mm	SIZE 8-6mm	1
XJ0682N	CR Fixed Insert Trail SIZE 3-7mm	SIZE 3-7mm	1
XJ0683N	CR Fixed Insert Trail SIZE 4-7mm	SIZE 4-7mm	1
XJ0684N	CR Fixed Insert Trail SIZE 5-7mm	SIZE 5-7mm	1
XJ0685N	CR Fixed Insert Trail SIZE 6-7mm	SIZE 6-7mm	1
XJ0686N	CR Fixed Insert Trail SIZE 7-7mm	SIZE 7-7mm	1
XJ0687N	CR Fixed Insert Trail SIZE 8-7mm	SIZE 8-7mm	1
XJ0688N	CR Fixed Insert Trail SIZE 3-8mm	SIZE 3-8mm	1
XJ0689N	CR Fixed Insert Trail SIZE 4-8mm	SIZE 4-8mm	1
XJ0690N	CR Fixed Insert Trail SIZE 5-8mm	SIZE 5-8mm	1
XJ0691N	CR Fixed Insert Trail SIZE 6-8mm	SIZE 6-8mm	1
XJ0692N	CR Fixed Insert Trail SIZE 7-8mm	SIZE 7-8mm	1
XJ0693N	CR Fixed Insert Trail SIZE 8-8mm	SIZE 8-8mm	1
XJ0695N	CR Balance Spacer 6-10mm	6-10	1
XJ0838N	MK CR Standard Knee Instrument Case	/	1
Total			32

Optional

REF	Name	Specification	Qty
XJ0538N	Slap hammer	/	1
XJ0648N	EM Alignment Guide(Spiked Fixation)	/	1
XJ0649V	Left Tibial Cutting Block 3°	/	1
XJ0652V	Right Tibial Cutting Block 3°	/	1
XJ0539V	Symmetrical Cutting Block 0°	/	1
XJ0655V	Symmetrical Cutting Block 3°	/	1
XJ0650V	Left Tibial Cutting Block 5°	/	1
XJ0653V	Right Tibial Cutting Block 5°	/	1
XJ0656V	Symmetrical Cutting Block 5°	/	1
XJ0657V	Symmetrical Cutting Block 7°	/	1
XJ0651V	Left Tibial Cutting Block 7°	/	1
XJ0654V	Right Tibial Cutting Block 7°	/	1
XJ0540N	Balance Spacer 11-16mm	11-16	1
XJ0694N	CR Balance Spacer 11-16mm	11-16	1
XJ0542N	Supplementary Block 8mm	+8mm	1
XJ0460V	Balance Spacer Block 4mm	4mm	1
XJ0470V	Stem Drill 20mm	20mm	1
XJ0471V	Stem Drill 30mm	30mm	1
Total			18

MK CR Knee Instrument Set (Small Size) (XJ1012-E)

REF	Name	Specification	Qty
XJ0708N	CR Femoral Trial SIZE 1 LEFT	SIZE 1 LEFT	1
XJ0709N	CR Femoral Trial SIZE 2 LEFT	SIZE 2 LEFT	1
XJ0710N	CR Femoral Trial SIZE 1 RIGHT	SIZE 1 RIGHT	1
XJ0711N	CR Femoral Trial SIZE 2 RIGHT	SIZE 2 RIGHT	1
XJ0712N	CR Fixed Insert Trail SIZE 1-6mm	SIZE 1-6mm	1
XJ0713N	CR Fixed Insert Trail SIZE 1-7mm	SIZE 1-7mm	1
XJ0714N	CR Fixed Insert Trail SIZE 1-8mm	SIZE 1-8mm	1
XJ0715N	CR Fixed Insert Trail SIZE 2-6mm	SIZE 2-6mm	1
XJ0716N	CR Fixed Insert Trail SIZE 2-7mm	SIZE 2-7mm	1
XJ0717N	CR Fixed Insert Trail SIZE 2-8mm	SIZE 2-8mm	1
XJ0574N	Tibial Trial Size1	1	1
XJ0575N	Tibial Trial Size2	2	1
XJ0576V	4-in-1 Cutting Block Size1	1	1
XJ0577V	4-in-1 Cutting Block Size2	2	1
XJ0718N	MK CR Knee Instrument Case (Small Size)	/	1
Total			15

MK CR Knee Instrument Set (Large Size) (XJ1011-E)

REF	Name	Specification	Qty
XJ0697N	CR Femoral Trial SIZE 9 LEFT	SIZE 9 LEFT	1
XJ0698N	CR Femoral Trial SIZE 10 LEFT	SIZE 10 LEFT	1
XJ0699N	CR Femoral Trial SIZE 9 RIGHT	SIZE 9 RIGHT	1
XJ0700N	CR Femoral Trial SIZE 10 RIGHT	SIZE 10 RIGHT	1
XJ0701N	CR Fixed Insert Trail SIZE 9-6mm	SIZE 9-6mm	1
XJ0702N	CR Fixed Insert Trail SIZE 9-7mm	SIZE 9-7mm	1
XJ0703N	CR Fixed Insert Trail SIZE 9-8mm	SIZE 9-8mm	1
XJ0704N	CR Fixed Insert Trail SIZE 10-6mm	SIZE 10-6mm	1
XJ0705N	CR Fixed Insert Trail SIZE 10-7mm	SIZE 10-7mm	1
XJ0706N	CR Fixed Insert Trail SIZE 10-8mm	SIZE 10-8mm	1
XJ0557N	Tibial Trial Size9	9	1
XJ0558N	Tibial Trial Size10	10	1
XJ0559V	4-in-1 Cutting Block Size9	9	1
XJ0560V	4-in-1 Cutting Block Size10	10	1
XJ0707N	MK CR Knee Instrument Case (Large Size)	/	1
Total			15

MK Fixed Bearing Tibial Tray

Materials: Ti6Al4V

REF	REF(prev)	SIZE	Specification	L/R	AP (mm)	ML (mm)
J1007-1-1	F13BB-PA00149	1	T0-61/40-I	-	40	60
J1007-1-2	F13BB-PA00150	2	T0-62/41-I	-	41	62
J1007-1-3	F13BB-PA00151	3	T1-65/43-I	-	43	65
J1007-1-4	F13BB-PA00152	4	T2-68/45-I	-	45	68
J1007-1-5	F13BB-PA00153	5	T2+-71/47-I	-	47	71
J1007-1-6	F13BB-PA00154	6	T3-75/49-I	-	49	75
J1007-1-7	F13BB-PA00155	7	T4--82/51-I	-	51	77
J1007-1-8	F13BB-PA00156	8	T4-80/53-I	-	53	80
J1007-1-9	F13BB-PA00157	9	T4+-82/54-I	-	55	83
J1007-1-10	F13BB-PA00158	10	T5-86/56-I	-	56	86

Fixed Bearing Tibial Tray Blueprint and Design

MK Tibial Instrument Set (XJ1005-E)

REF	Name	Specification	Qty
XJ0646N	Ankle Clamp	/	1
XJ0647N	EM Alignment Guide(Non Spiked Fixation)	/	1
XJ0457V	Secondary Cutting Block	/	1
XJ0458N	Tibial Stylus	/	1
XJ0459N	Balance Spacer 6-10mm	6-10	1
XJ0541N	Supplementary Block 3mm	+3mm	1
XJ0461V	Supplementary Block 4mm	+4mm	1
XJ0462N	Tibial Trial Size3	3	1
XJ0463N	Tibial Trial Size4	4	1
XJ0464N	Tibial Trial Size5	5	1
XJ0465N	Tibial Trial Size6	6	1
XJ0466N	Tibial Trial Size7	7	1
XJ0467N	Tibial Trial Size8	8	1
XJ0468N	Tibial Drill Tower	/	1
XJ0469N	Drill Stop Collar	/	1
XJ0472V	Tibial Drill	/	1
XJ0543V	Tibial Keel Punch Size 1-3	1-3	1
XJ0473V	Tibial Keel Punch Size 4-7	4-7	1
XJ0474V	Tibial Keel Punch Size 8-10	8-10	1
XJ0475N	Insert Impactor	/	1
XJ0476N	Tibial Impactor	/	1
XJ0477N	Stem Impactor	/	1
XJ0478V	Angle Curette	/	1
XJ0479V	Stripper	/	1
XJ0480H	Straight Osteotome	/	1
XJ0481H	Curved Osteotome	/	1
XJ0482V	Retractor	/	2
XJ0483V	Ligament Retractor	/	1
XJ0484N	Lamina Spreader	/	1
XJ0836N	MK Tibial Instrument Case	/	1
XJ0455V	Left Tibial Cutting Block 0°	/	1
XJ0456V	Right Tibial Cutting Block 0°	/	1
Total			32

Optional

REF	Name	Specification	Qty
XJ0743N	Stylus	/	1
Total			1

MK Patellar Component

Materials: UHMWPE

REF	REF(prev)	SIZE	Specification	D	H
J1002-1-3080	F13BB-PA00075	30/8	30/8	30	8
J1002-1-3380	F13BB-PA00076	33/8	33/8	33	8
J1002-1-3685	F13BB-PA00077	36/8.5	36/8.5	36	8.5
J1002-1-3885	F13BB-PA00078	38/8.5	38/8.5	38	8.5
J1002-1-2580	F13BB-PA00194	25/8	25/8	25	8
J1002-1-2780	F13BB-PA00195	27/8	27/8	27	8
J1002-1-3085	F13BB-PA00198	30/8.5	30/8.5	30	8.5
J1002-1-3390	F13BB-PA00199	33/9	33/9	33	9
J1002-1-36100	F13BB-PA00200	36/10	36/10	36	10
J1002-1-38100	F13BB-PA00201	38/10	38/10	38	10

MK Patella Instrument Set (XJ1006-E)

REF	Name	Specification	Qty
XJ0486N	Patella Resection Guide	/	1
XJ0487N	Patella stylus	/	1
XJ0488N	Patella Clamp	/	1
XJ0642N	Patella Drill Guide	/	1
XJ0493N	Patella Button	/	1
XJ0494N	Patella Trial 30/8.5mm	30/8.5	1
XJ0495N	Patella Trial 33/9mm	33/9	1
XJ0496N	Patella Trial 36/10mm	36/10	1
XJ0497N	Patella Trial 38/10mm	38/10	1
XJ0498N	MK Patella Instrument Case	/	1
Total			10

MK Tibial Stem

Materials: Ti6Al4V

REF	SIZE	Specification	D	Length
J1008-1-1210	10	12-10	12	10
J1008-1-1220	20	12-20	12	20
J1008-1-1230	30	12-30	12	30

MK Plug

Materials: UHMWPE

REF	SIZE	Specification
J1020-1-14	14	Φ14mm

Matching Table (Knee Size Cross-Reference)

Femoral Component

Tibial Insert

Tibial Tray

Patellar

1

2

3

30 33 36 38

2

1

2

3

4

30 33 36 38

3 / N3

3

1

2

3

4

5

30 33 36 38

4 / N4

4

2

3

4

5

6

33 36 38

5 / N5

5

3

4

5

6

7

33 36 38

6 / N6

6

4

5

6

7

8

33 36 38

7

5

6

7

8

9

38

8

6

7

8

9

10

38

9

7

8

9

10

38

10

8

9

10

38

Content

MH Acetabular Cup Tri-holes

MH Acetabular Cup Multi-holes

MH Acetabular Cup Type VI

MH 3D-print Acetabular Cup (Tri-Holes VII)

MH 3D-print Acetabular Cup (Multi-Holes VII)

MH Acetabular Liner

MH Acetabular Liner XLPE II

MH Acetabular Liner XLPE

MH Ceramic Liner

MH Plug-Bottom Hole

MH Plug -Screw Hole

Screw for Acetabular Cup

Screw for Acetabular Cup

Acetabular Component

Acetabular Component

All-Polyethylene Cup

MH 3D-print Acetabular Augment(VII)

Acetabular Component Type III

Acetabular Cup Type III

Acetabular Cup

Acetabular Insert

MH Centralizer V

MH Centralizer I

Cement Restrictor

Cement Restrictor-Type II

Ceramic Head-Delta

MH Ceramic Head

Metal Femoral Head

Metal Femoral Head

Ceramic Head-Forte

Acetabular System Instrument Set (F16AB-PA00002) - Part 1

Acetabular System Instrument Set (F16AB-PA00002) - Part 2

Option (※ are Optional tools)

MH Hip Joint Instrument Upgrade Set (F16AB-PA00470)

Acetabular Liner Trial Tray (F16AB-PA00575)

Option (※ are Optional tools)

Option (※ are Optional tools)

Bipolar Head

Bipolar Trial Tray (F16AB-PA00412)

Option (※ are Optional tools)

MH NEOS Primary Stem

MH NEOS Primary Stem

NEOS Primary Stem

NEOS Primary Stem

NEOS Primary Stem

NEOS Primary Stem Instrument Set (F16AB-PA00386)

Option (※ are Optional tools)

MH Tapered Stem

NEOS Primary Stem Instrument Set (F16AB-PA00386) - Part 1

Tapered Stem

Tapered Stem

Tapered Stem Instrument Set (F16AB-PA00094) - Part 1

Tapered Stem Instrument Set (F16AB-PA00094) - Part 2

Wedge-shaped Stem

Wedge-shaped Stem

Wedge-shaped Stem Instrument Set (F16AB-PA00042)

Wedge-shaped Stem Instrument Set (F16AB-PA00042) - Part 2

Cemented Stem-Wedge Shaped

MH Cemented Stem-Settlement

Cemented Stem Instrument Set (F16AB-PA00405)

NEOS Revision Stem

NEOS Revision Stem Instrument Set (F16AB-PA00384) - Part 1

NEOS Revision Stem Instrument Set (F16AB-PA00384) - Part 2

Option (※ are Optional tools)

NEOS Revision Stem

NEOS Revision Stem

Femoral Component

Femoral Instrument Set (F16AB-PA00168) - Part 1

Femoral Instrument Set (F16AB-PA00168) - Part 2

Femoral Instrument Set (F16AB-PA00168) - Part 3

Option (※ are Optional tools)

Tibial Tray

Tibial Insert

Tibial Instrument Set (F16AB-PA00217) - Part 1

Tibial Instrument Set (F16AB-PA00217) - Part 2

Patellar Component

Patella Instrument Set (F16AB-PA00274)

Size Table (Compatibility Matrix)

MK PS Femoral Component
