INVADER™ PTCA

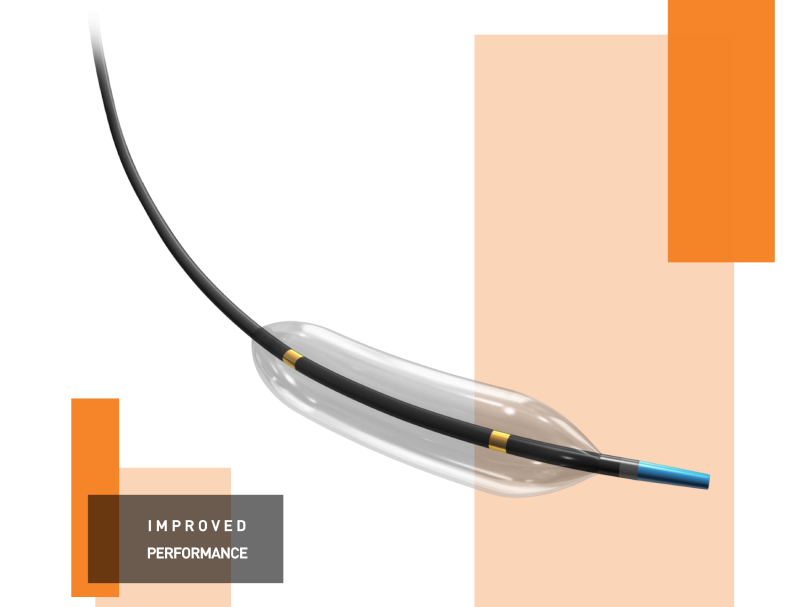

PTCA RX BALLOON DILATATION CATHETER
- Work horse semi-compliant balloon catheter for daily use
- Low distal tip profile for improved crossability
- 6F kissing balloon technique compatible up to 4,00 mm balloon*

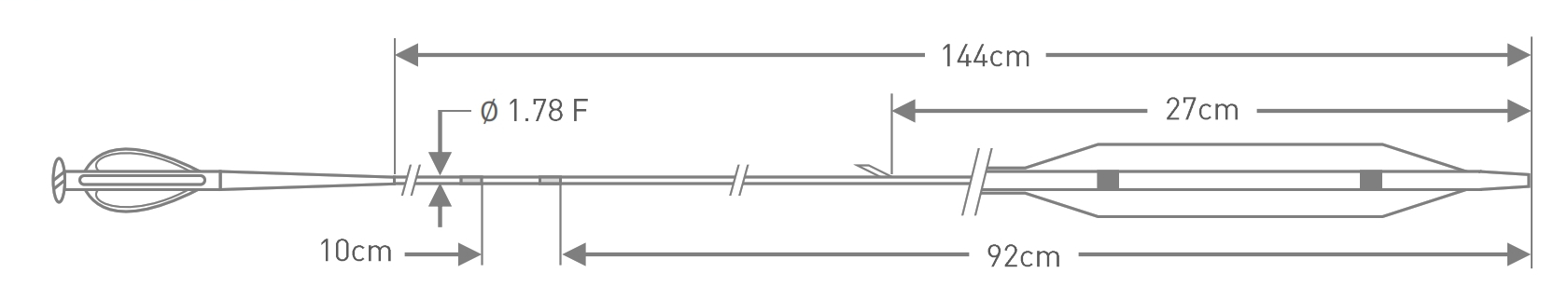

Catheter Dimensions & Technical Data
Catheter Specifications
| Category | Rapid Exchange balloon catheter |
| Guiding catheter compatibility | 5F |
| Guidewire compatibility | 0.014” |
| Usable catheter length | 144 cm |
| Proximal shaft | stainless steel AISI 304, Teflon coating |
| Distal shaft | trilayered polyamide blend shaft |
| Tip material /entry profile | PEBA blend / 0.017” |
Balloon Specifications
| Category | Semi Compliant |
| Material | Grilamid L25 (Nylon 12) |
| X-ray visibility | Two gold markers |
| Nominal Pressure | 8 atm |
| Rated Burst Pressure | 16 atm |
| Average Burst Pressure | 20 atm |
Compliance Chart
| Pressure [atm] | 1.25 | 1.50 | 2.00 | 2.25 | 2.50 | 2.75 | 3.00 | 3.25 | 3.50 | 3.75 | 4.00 | 4.50 | 5.00 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 (Nominal) | 1.24 | 1.48 | 2.01 | 2.21 | 2.56 | 2.76 | 3.02 | 3.22 | 3.51 | 3.74 | 4.01 | 4.51 | 5.02 |
| 9 | 1.27 | 1.52 | 2.04 | 2.26 | 2.60 | 2.80 | 3.06 | 3.26 | 3.55 | 3.80 | 4.05 | 4.55 | 5.11 |
| 10 | 1.30 | 1.55 | 2.07 | 2.30 | 2.63 | 2.83 | 3.09 | 3.30 | 3.58 | 3.85 | 4.08 | 4.59 | 5.18 |
| 11 | 1.33 | 1.58 | 2.10 | 2.33 | 2.66 | 2.85 | 3.12 | 3.33 | 3.60 | 3.90 | 4.11 | 4.62 | 5.24 |
| 12 | 1.36 | 1.61 | 2.12 | 2.37 | 2.68 | 2.87 | 3.14 | 3.36 | 3.63 | 3.93 | 4.14 | 4.65 | 5.30 |
| 13 | 1.40 | 1.64 | 2.15 | 2.40 | 2.71 | 2.90 | 3.16 | 3.40 | 3.65 | 3.96 | 4.17 | 4.68 | 5.34 |
| 14 | 1.43 | 1.67 | 2.18 | 2.43 | 2.74 | 2.92 | 3.19 | 3.42 | 3.68 | 3.99 | 4.19 | 4.70 | 5.42 |
| 15 | 1.47 | 1.71 | 2.21 | 2.47 | 2.77 | 2.94 | 3.22 | 3.46 | 3.70 | 4.02 | 4.22 | 4.74 | 5.42 |
| 16 (RBP) | 1.51 | 1.75 | 2.24 | 2.50 | 2.80 | 2.97 | 3.24 | 3.49 | 3.73 | 4.05 | 4.24 | 4.77 | 5.47 |
Order Information
| ∅ \ L [mm] | 6 | 10 | 12 | 15 | 20 | 25 | 30 | 34 |
|---|---|---|---|---|---|---|---|---|
| 1.25 | 512110021610 | 512110021611 | 512110021612 | 512110021613 | 512110021614 | - | - | - |
| 1.50 | 512110021615 | 512110021616 | 512110021501 | 512110021617 | 512110021502 | - | - | - |
| 2.00 | 512110021618 | 512110021619 | 512110021503 | 512110021504 | 512110021506 | 512110021508 | - | - |
| 2.25 | 512110021620 | 512110021621 | 512110021622 | 512110021623 | 512110021624 | 512110021625 | - | - |
| 2.50 | 512110021626 | 512110021627 | 512110021509 | 512110021510 | 512110021512 | 512110021514 | 512110021516 | 512110021517 |
| 2.75 | 512110021628 | 512110021629 | 512110021551 | 512110021552 | 512110021554 | 512110021556 | 512110021558 | 512110021559 |
| 3.00 | 512110021630 | 512110021631 | 512110021518 | 512110021519 | 512110021521 | 512110021523 | 512110021525 | 512110021526 |
| 3.25 | - | 512110021632 | 512110021633 | 512110021634 | 512110021635 | 512110021636 | 512110021637 | 512110021638 |
| 3.50 | - | 512110021639 | 512110021527 | 512110021528 | 512110021530 | 512110021532 | 512110021534 | 512110021535 |
| 3.75 | - | 512110021640 | 512110021641 | 512110021642 | 512110021643 | 512110021644 | 512110021645 | 512110021646 |
| 4.00 | - | 512110021647 | 512110021536 | 512110021537 | 512110021539 | 512110021541 | 512110021543 | 512110021544 |
| 4.50 | - | 512110021648 | 512110021546 | 512110021547 | 512110021549 | 512110021649 | 512110021650 | 512110021651 |
| 5.00 | - | 512110021652 | 512110021653 | 512110021654 | 512110021655 | - | - | - |
